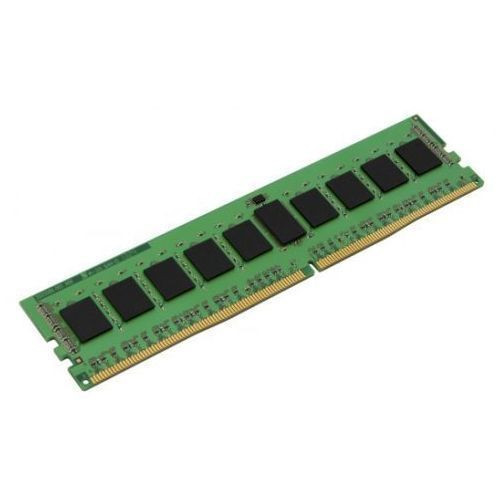

Kingston 16Gb Ddr4 3200Mhz Pc4-25600 Cl22 Dimm Memory KVR32N22S8/16

ValueRAM's KVR32N22D8/32 is a 4G x 64-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

Power Supply: VDD = 1.2V Typical
VDDQ = 1.2V Typical
VPP = 2.5V Typical
VDDSPD = 2.2V to 3.6V
Nominal and dynamic on-die termination (ODT) for  data, strobe, and mask signals
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Dual-rank
On-board I2 serial presence-detect (SPD) EEPROM
16 internal banks; 4 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus
PCB: Height 1.23” (31.25mm)
RoHS Compliant and Halogen-Free

DescriptionSpecification

Series: Kingston ValueRAM
DDR Type: DDR4
Size: 1 x 16GB
#Hide#Individual Module Size: 16GB
#Hide#Total Capacity: 16GB Total
Speed: 3200 MHz
Compliance: PC4-25600
Pins: 288-pin
CAS Latency: CL22
Data Integrity Check: Non-ECC
Voltage: 1.2V
Timings: 22-22-22
Heatsink: No
#Hide#LED Lighting: No
Additional Information: See Overview
Package Type: Blister Pack
Package Weight: 0.0225 kg
Warranty: Lifetime
