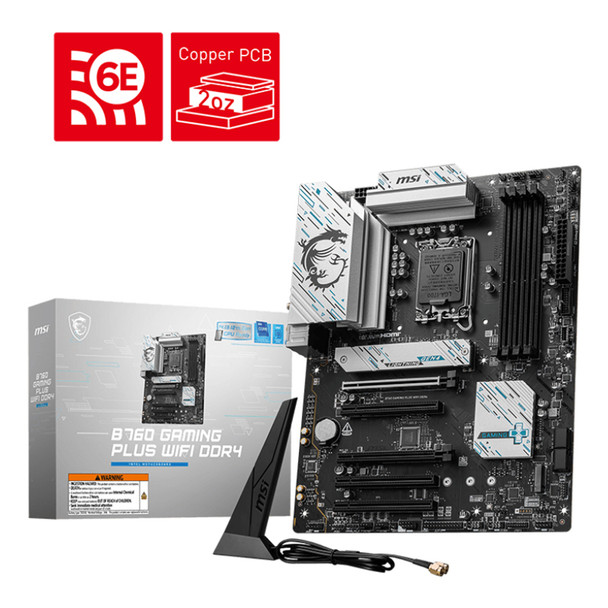

MSI B760 GAMING PLUS WIFI DDR4 Intel LGA 1700 Intel Celeron Intel Pentium Gold L B760 GAMING PLUS WIFI DDR4

B760 GAMING PLUS WIFI DDR4
The B760 GAMING PLUS WIFI DDR4 is crafted to offer extensive connectivity, versatile tools, and a convenient Wi-Fi solution for gamers seeking a comprehensive experience. Featuring 2.5G LAN, Wi-Fi 6E, DDR4 support, PCIe 4.0 capabilities, and dual M.2 connectors, it is optimized for Intel Core 14th /13th /12th Gen processors.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.

7W/mK Thermal Pad & Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

DIY 2.0 INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked keep-out-zone allows for easy and safe installation and a perfect fit.

LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
B760 GAMING PLUS WIFI DDR4 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

Features


Support Intel CoreTM 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket


Supports DDR4 Memory, up to 5333+(OC) MHz


Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost


Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience


Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G


2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection


High Quality PCB: 6-layer PCB made by 2oz thickened copper


Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience



Processor


Processor socket

LGA 1700


Compatible processor series

Intel Celeron, Intel Pentium Gold


Supported processor sockets

LGA 1700


Maximum internal memory supported by processor
8 GB


Processor manufacturer

Intel



Weight & dimensions


Width

243.8 mm


Depth

304.8 mm



BIOS


ACPI version

6.4


BIOS type

UEFI AMI


BIOS memory size

256 Mbit



Storage controllers


Number of storage drives supported

6


RAID support

Yes


RAID levels

0, 1, 5, 10


Supported storage drive interfaces

M.2, SATA


Number of HDDs supported

4



Memory


Supported memory types

DDR4-SDRAM


Non-ECC

Yes


Number of memory slots

4


Maximum internal memory
8 GB


Memory slots type

DIMM


Supported memory clock speeds

2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4200,4266,4400,4600,4800,5000,5066,5200,5333 MHz


Memory channels

Dual-channel



Network


LAN controller

Dragon RTL8125BG


Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)


Bluetooth

Yes


Wi-Fi

Yes


Top Wi-Fi standard

Wi-Fi 6 (802.11ax)


Ethernet LAN

Yes


Ethernet interface type

2.5 Gigabit Ethernet


Bluetooth version

5.3



Expansion slots


PCI Express x1 slots

3


PCI Express x1 (Gen 3．x) slots

3


PCI Express x16 slots

2


Number of M．2 (M) slots

2


PCI Express x16 (Gen 4．x) slots

2



Rear panel I/O ports


HDMI ports quantity

1


USB 3．2 Gen 2 (3．1 Gen 2) Type-C ports quantity

1


DisplayPort version

1.4


DisplayPorts quantity

1


Ethernet LAN (RJ-45) ports

1


S/PDIF out port

Yes


USB 3．2 Gen 2 (3．1 Gen 2) Type-A ports quantity

2


HDMI version

2.1


USB 2．0 ports quantity

4



Internal I/O


USB 2．0 connectors

4


USB 3．2 Gen 1 (3．1 Gen 1) connectors

3


Total number of SATA connectors

4


S/PDIF out connector

Yes


Number of SATA III connectors

4


TPM connector

Yes


RGB LED pin header

Yes



Features


Motherboard chipset

Intel B760


Windows operating systems supported

Windows 10 x64, Windows 11 x64


Motherboard chipset family

Intel


Component for

PC


Audio chip

Realtek ALC897


Audio output channels

7.1 channels


Motherboard form factor

ATX
