ThermalTake CA-1H8-00M1WN-00 housing View 31 TG CA-1H8-00M1WN-00

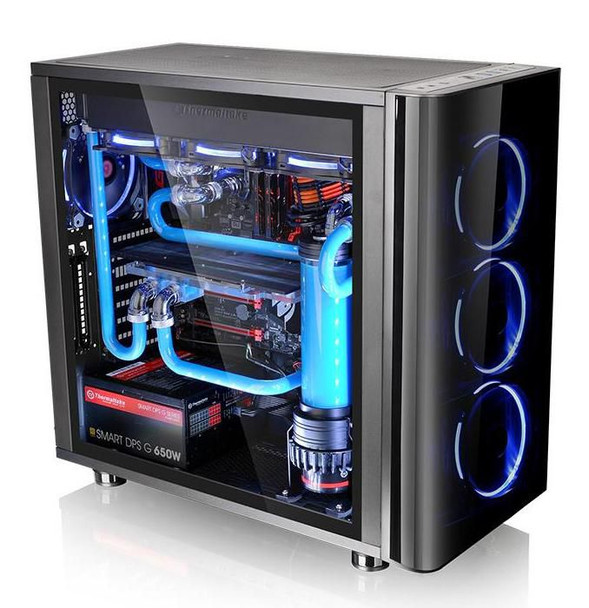

Thermaltake View 31 TG Tempered Glass Mid-Tower Chassis
The View 31 TG Tempered Glass Mid-Tower Chassis features dual durable 4mm thick tempered glass window, riser GPU support bracket with optional PCI-e riser cable, two preinstalled 140mm Riing Blue fans with removable filters, and outstanding system ventilation. The View 31 TG supports the latest PC hardware and all high-end GPU solutions, guarantees on unparalleled expandability for high-end configurations and liquid cooling system to satisfy the market where users have opted for stylish PC chassis with advanced features and aesthetic appeal.

Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

Left and Right 4 mm Thick Tempered Glass Window Design
View 31 TG with left and right 4 mm thick tempered glass window guarantees the durability of the window; moreover, the enlarged window design permits users to fully display and admire all components of the liquid-cooling system. Show off your dedicated set in the subtlest manner!

Fully Modular Concept
The View 31 TG comes with fully modular drive cages that provide the ease of installation/removal and maximize the interior space for custom cooling loop. Especially, the tool-less drive bay design allows users to freely interchange the 3.5� and 2.5� hard-drives to suit their particular needs.

Riser GPU Support Bracket
Specially designed with dual GPU placement, the View 31 TG has the support for vertical graphic card layout with dual PCI-E slots design. The PCI-e riser cable is optional. Plus, the included riser GPU support bracket not only can prevent the graphic card from sagging, but also helps to reduce the weight on the motherboard.
Thermaltake PCI-e X16 Riser Cable (Optional) � Support a wide range of GPU solutions.

Dust Reduction
Magnetic fan filter on the top simply attaches the filter for dust filtration. Super fine fan filters with excellent protection and reduction against dirt and dust at the bottom.

Made for High-End PCs with Outstanding Expandability
The View 31 TG features its cable management with maximum 50mm in width, and supports up to a tower CPU cooler with maximum height 180mm, and a dual expansion slot VGA of up to 420mm in length without HDD rack. Moreover, the View 31 TG has the ability to accommodate multiple 3.5�/2.5� storage devices at the same time. Most importantly, the hidden drive bay design guarantees expandability for more liquid cooling components.


Advanced Ventilation
The View 31 TG Series delivers advanced cooling performance for DIY/AIO liquid cooling and air cooling systems. With wide top-to-bottom side ventilation grills, the View 31 TG maximizes the air intake with two built-in 140mm Riing Blue LED fans. It includes options for up to (3) 120mm or 140mm front fans, combined with (2) bottom mount 120mm fan locations for maximum fan space selection. Dissipate heat properly with (1) rear built-in 140mm fan and (3) sectional top mounts to manage proper air flow in and out.

Cooling



Bottom fans diameters supported



120, 140


Front fans diameters supported



120, 140, 200


Front fans installed



1x 140 mm


Front radiator fan sizes supported



280, 360


Number of bottom fans supported (max)



4


Number of front fans supported (max)



3


Number of rear fans supported (max)



2


Number of top fans supported (max)



8


Rear fans diameters supported



120, 140


Rear fans installed



1x 140 mm


Rear radiator fan sizes supported



120, 140


Top fans diameters supported



120, 140, 200


Top radiator sizes supported



280, 360


Design



Form factor



Midi Tower


Material



SPCC, Tempered glass


Maximum CPU cooler height



18 cm


Maximum graphics card length



42 cm


Maximum PSU length



22 cm


Number of 2.5" bays



3


Number of 3.5" bays



3


Number of expansion slots



10


Product colour



Black


Reset button



Yes


Side window



Yes


Suitable for



Gaming


Supported motherboard form factors



ATX, micro ATX, Mini-ITX


Type



PC


Logistics data



Harmonized System (HS) code



84733080


Other features



Harmonized System (HS) code



84733080


Package dimensions



Gross Weight (Package, kg)



9.9 kg


Ports & interfaces



Audio input



Yes


Audio output



Yes


USB 2.0 ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


Power supply



Power supply included



No


Power supply location



Bottom


Product dimensions



Net Weight (Product, kg)



9.8 kg


Product Depth



51.1 cm


Product Height



49.7 cm


Product Width



25 cm


Storage



HDD/SSD combo cage



Yes


Supported HDD sizes



2.5, 3.5


Vendor information



Brand Name


ThermalTake


Warranty



1 Year(s)


Weight & dimensions



Material thickness



4 mm
