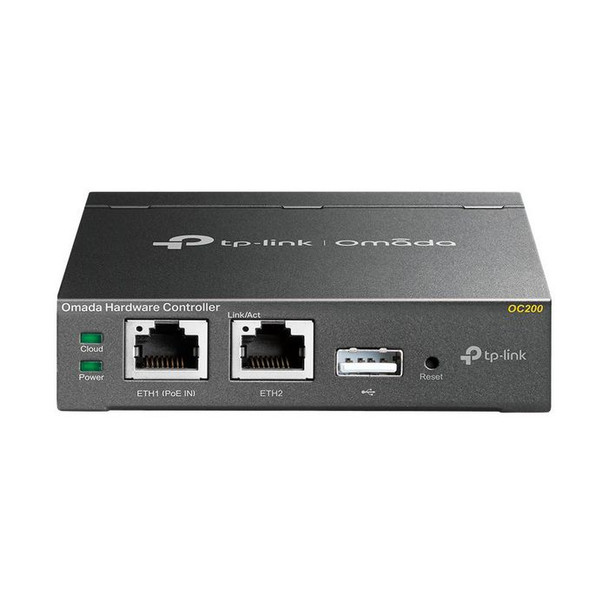

TP-Link OC200 Omada Cloud Controller OC200

Dedicated In Network Centralized Management
The OC200 Omada Cloud Controller delicate to provide centralized management for the whole Omada network. Monitor statistics in real-time, view a graphical analysis of network traffic, create a captive portal, upgrade and reboot your system, and easily scale your network to boost your business.

Free Cloud Management � Anywhere, Anytime
Omada offers free cloud access to its centralized management platform. Take your network with you, wherever you go.

Industry Leading Hardware Design
Equipped with an advanced hardware design and the latest chipset, OC200 has the impressive processing power to support the massive management of your business network.

Guest Network with Facebook Wi-Fi and SMS Login
Visitors have access to secure Wi-Fi with captive portal and wireless isolation technology. Newly added SMS authentication simplifies the connection process, while Facebook authentication raises the social media profile of your business.

Even More Convenient with Omada App
Remotely access and configure the OC200 from the convenience of your smartphone, wherever you are in the world.

Certificates



Certification



CE, FCC, RoHS


Design



Certification



CE, FCC, RoHS


LED indicators



Y, Yes


Display



Control display unit



No


Indication



LED indicators



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Management platform



L3


Quality of Service (QoS) support



Yes


Reset button



Yes


Web-based management



Yes


Memory



Flash memory



4000 MB


Internal memory



1024 MB


Internal memory type



DDR3


Network



Ethernet LAN data rates



10, 100


Networking standards



IEEE 802.3af, IEEE 802.3at


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Depth (package,cm)



14 cm


Gross Weight (Package, kg)



0.48 kg


Height (package,cm)



7.4 cm


Width (package,cm)



13 cm


Packaging content



Cables included



LAN (RJ-45)


Quick installation guide



Yes


Performance



Built-in processor



Yes


Control display unit



No


Flash memory



4000 MB


Internal memory



1024 MB


Internal memory type



DDR3


Number of processors installed



1


Processor frequency



1000 MHz


Ports & interfaces



Ethernet LAN (RJ-45) ports



2


USB 2.0 ports quantity



1


Power



DC input voltage



5 V


Power consumption (typical)



5 Watt


Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



0.464 kg


Product Depth



9.8 cm


Product Height



2.5 cm


Product Width



10 cm


Security



MAC address filtering



Yes


Security algorithms



SSID, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK


VLAN support



Yes


Software



Compatible operating systems



Windows10, 8, 7,Vista, XP; MAC OS; NetWare, UNIX; Linux


Technical details



Built-in processor



Yes


Harmonized System (HS) code



85176990


Management platform



L3


Number of processors installed



1


Processor frequency



1000 MHz


Vendor information



Brand Name


TP-Link


Warranty



1 Year(s)
