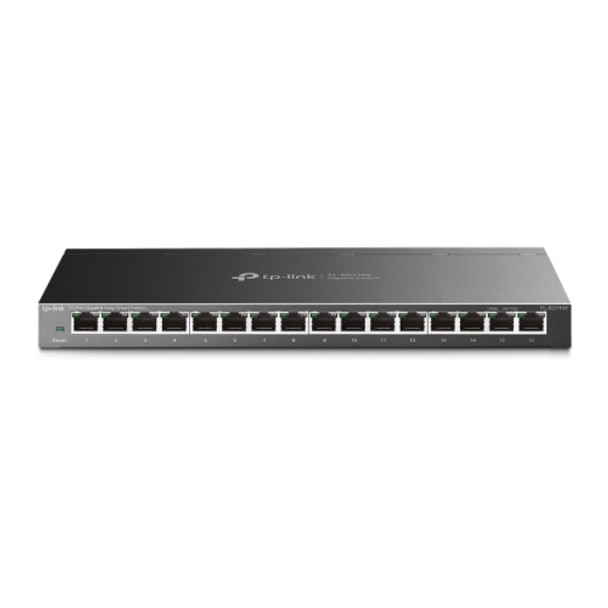

Tp-Link TL-SG116E 16-Port Gigabit Unmanaged Pro Switch Steel Case TL-SG116E

16-Port Gigabit Unmanaged Pro Switch

16 10/100/1000Mbps RJ45 ports
Plug and play, with no configuration required
Durable metal casing of superior quality and professional appearance
Intelligent management via a web user interface and downloadable utility
Green technology reduces power consumption

Link your devices, Create Convenient Business

The TL-SG116E Desktop Switch provides you an easy way to increase the speed of your network server and backbone connections. Whether you are at home or in the office, the TL-SG116E can always help you deal with your business quickly and easily.





More features, more choices

Administrators can designate the priority of traffic based on QoS to ensure that voice and video applications remain clear and lag-free.  IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.






Durable Metal Casing

The interior components of TL-SG116E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG116E delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.





Go Green with Your Ethernet

TP-Link's latest generation of Unmanaged Pro Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills - it's a win-win!

DescriptionSpecification

Rackmountable: No
Management: No
Number of Ports: 16
Data Transfer Rate: 10/100/1000 Mbps
Interface(s): 16 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
PoE Ports (RJ45): -
Standards and Protocols: "IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p"
Switching Capacity: 32Gbps
Power Supply: External Power Adapter
(Output: 12VDC/1A)
Dimensions: 286 x 111.7 x 25.4 mm
Transfer Method: Store-And-Forward
Mac Address Table: 8K
Packet Forwarding Rate: 23.81Mpps
Jumbo Frame: 9KB
Advanced Functions: See Overview
Quality of Service: Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
Layer Features: IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Environment: Operating Temperature: 0C
40C (32F4F)
Storage Temperature: -40C
70C (-40F8F)
Operating Humidity: 10%
90% non-condensing
Storage Humidity: 5%
90% non-condensing
Package Contents: TL-SG116E
Power Cord
Installation Guide
Rubber Feet
Package Type: Retail
Warranty: Limited Lifetime
#Hide#POE: No
