Acousti OEM-AFG120B 32 Black Anti-vibration 120mm Fan Gaskets OEM-AFG120B

See also: Fan Gasket single retail packs These super-soft; super-thick silicone fan gaskets are the softest; thickest and most effective fan gasket available. They are much thicker than any competing product we know of; and are designed to dramatically reduce the vibration from any PC or server case cooling fans. The 60mm gaskets are 1.5mm thick; and the larger sizes are 2.5mm thick.

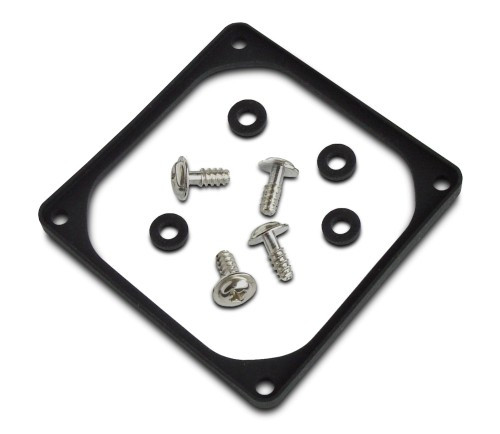

Included with each gasket are silicone washers and anti-vibration screws. These screws feature a unique thread design which prevents the shank touching the fan and vibrations being transmitted and amplified through to the chassis. The result? Much less noise!

Advantages

Help to absorb the vibration that otherwise would be transmitted from the fan into the case chassis and case housing. Help to 'seal' the small gap between the fan and the casing/enclosure wall. This improves the efficiency of the fan; by reducing feedback airflow and therefore air pressure losses.

Other advantages include:
Compatible with virtually all case cooling fans Supplied with screws and silicone washers Quick and very easy to fit (these gaskets 'hold onto' the fan whilst fitting them due to a small lip in the gasket design)

Technical Spec

Operating Temperature: -20 to +70C Softness: Shore A 25
5 Material: Silicone Rubber Gasket Thickness: 2.5mm Recommended Compression: 5% of height


These gaskets are suitable for the vast majority of case designs and fan combinations; as they fit standard fan mounting holes. Slightly lengthened (12mm thread) fan mounting screws are supplied with the fan gaskets and washers. These gaskets can be used with standard PC cooling fans; and not just with AcoustiFan quiet case fans. Note: Do not use these gaskets in very high temperature locations inside a PC/Server such as attached to CPU or GPU heat sinks!
Fitting Directions

Fit the fan gasket onto the outside of the fan housing (it will stay on the fan) Position the fan and gasket together against the inside of the case; so that the four mounting holes in the fan and gasket line up to the mounting holes in the case side Locate the four silicone washers and screws; and fit the washers against the case side; each secured by a screw Tighten the screws enough to very slightly compress the silicone rubber. Do not overtighten.


Effective? - Yes; these are simply the most effective yet! Why are these silicone fan gaskets especially effective? Because Acousti Products have not held back on the silicone thickness and the silicone material softness. We are confident that these gaskets are more effective than any other models available.
