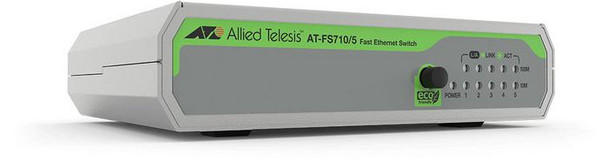

Allied Telesis AT-FS710/5-50 Fs710/5 Unmanaged Fast AT-FS710/5-50

The Allied Telesis FS710 Series is the economical and eco-friendly solution for today�s networks, providing an extensive range of cost-effective options.

The FS710 Series switches providesilent operation, with easy set-upand simple connectivity for desktop and small to medium network environments.

High performance
Full auto-negotiating 10/100 ports allow FS710 switches to detect the speed and duplex modes of attached devices, and automatically configure for the best possible performance.

Quality and reliability
Allied Telesis is a world-wide leader in unmanaged Ethernet switches. Shipping more than 250,000 unmanaged switches every year, Allied Telesis offers proven reliability, and
industry-recognized quality.

Data transmission



Jumbo frames



2048


Jumbo frames support



Yes


MAC address table



2000 entries


Packet buffer memory



0.096 MB


Switching capacity



1 Gbit/s


Throughput



0.74 Mpps


Design



Certification



VCCI Class B FCC Class B EN55032 Class A CISPR 32 Class B RCM Class B


LED indicators



Activity, Link, Power


Product colour



Green, Grey


Safety



UL60950-1, CSAC22.2 ?60950-1, EN60950-1(TUV), CE


Wall mountable



Yes


Management features



Switch type



Unmanaged


Network



10G support



No


Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Flow control support



Yes


Full duplex



Yes


Networking standards



IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x


Operational conditions



Operating altitude



0 - 2000 m


Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-20 - 70 �C


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



5


Basic switching RJ-45 Ethernet ports type



Fast Ethernet (10/100)


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Power consumption (max)



1.8 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



10.1 cm


Product Height



3 cm


Product Width



13.1 cm


Sustainability



Sustainability certificates



RoHS


Vendor information



Brand Name


Allied Telesis


Warranty



1 Year(s)
