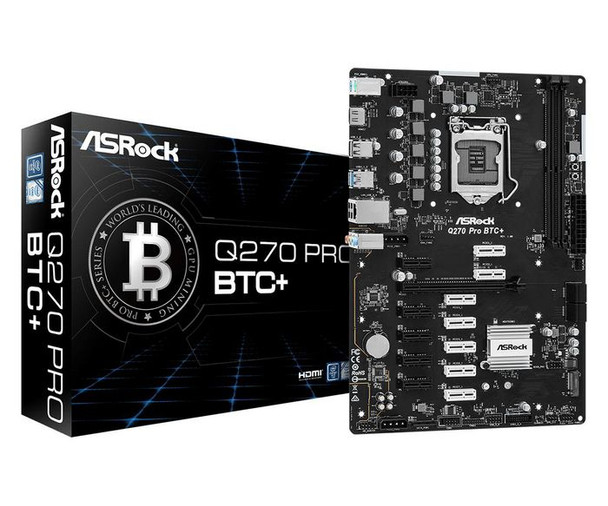

Asrock 90-MXBHM0-A0UAYZ Q270 Pro Btc+ Intel Q270 Lga 90-MXBHM0-A0UAYZ

Crypto Mining
This motherboard is specifically designed for mining, the revolutionary digital crypto-currency that may be used anywhere in the world. The abundant onboard PCIe slots guarantee fast Crypto mining, while the additional power connectors provide advanced system stability while mining.

M.2 For SSD
M.2 socket supports 2260/2280/22110 SATA3 mode M.2 SSD for up to 6Gb/s.

Smart PCIe State Detection
This motherboard has included a smart way to show the status of every graphics card. While the system is booting, the Power-On, Self-Test (POST) screen will show the status of the graphics cards that were installed on the motherboard.

Intel� LAN
Intel� LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Power On / Reset Button
Power On & Off system with onboard button is a must for open frame mining.

Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard�s components from being damaged by these unexpected voltage spikes.

BIOS



ACPI version



6.0


BIOS memory size



128 Mbit


BIOS type



UEFI AMI


System Management BIOS (SMBIOS) version



2.7


Expansion slots



Number of M.2 (M) slots



1


PCI Express x1 (Gen 3.x) slots



12


PCI Express x16 (Gen 3.x) slots



1


Features



Audio chip



Realtek ALC897


Audio output channels



7.1 channels


Component for



PC


Motherboard chipset



Intel� Q270


Motherboard chipset family



Intel


Motherboard form factor



ATX


Windows operating systems supported



Windows 10 x64, Windows 7, Windows 8.1 x64


Graphics



Parallel processing technology support



Not supported


Internal I/O



12V power connector



Yes


ATX Power connector (24-pin)



Yes


CPU fan connector



Yes


Front panel audio connector



Yes


Number of chassis fan connectors



2


Number of COM connectors



1


Number of SATA III connectors



4


TPM connector



Yes


USB 2.0 connectors



1


USB 3.2 Gen 1 (3.1 Gen 1) connectors



1


Logistics data



Harmonized System (HS) code



84733020


Memory



Maximum internal memory



32 GB


Memory channels



Dual-channel


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



2


Supported memory clock speeds



2133, 2400


Supported memory types



DDR4-SDRAM


Network



Ethernet interface type



Gigabit Ethernet


Ethernet LAN



Yes


LAN controller



Intel� I219-V


Wake-on-LAN ready



Yes


Wi-Fi



No


Other features



Weight



500 g


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Packaging content



Cables included



SATA


Processor



Compatible processor series



Intel� Celeron�, Intel� Core� i3, Intel� Core� i5, Intel� Pentium�


Processor manufacturer



Intel


Processor socket



LGA 1151 (Socket H4)


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



20.8 cm


Product Height



5.5 cm


Product Width



30.5 cm


Rear panel I/O ports



Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


Microphone in



Yes


PS/2 ports quantity



2


USB 2.0 ports quantity



4


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


Storage controllers



Number of storage drives supported



5


RAID levels



0, 1, 5, 10


RAID support



Yes


Supported storage drive interfaces



M.2, SATA III


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


Asrock


Warranty



1 Year(s)
