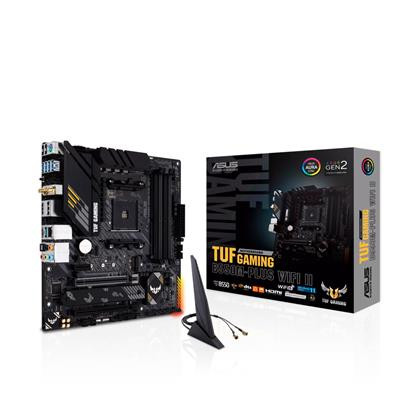

Asus TUF GAMING B550M-PLUS WIFI II Socket Am4/B550/Ddr4/S-Ata 600/Micro Atx TUF GAMING B550M-PLUS WIFI II

ASUS AM4 TUF GAMING B550M-PLUS WIFI II
SKU: 122169
Product Group:Motherboards
Manufacturer:ASUS
SKU:122169
Product Name:ASUS TUF GAMING B550M-PLUS WIFI II (Socket AM4/B550/DDR4/S-ATA 600/Micro ATX)
Web Address:www.asus.com
Model Number:TUF GAMING B550M-PLUS WIFI II
EAN:4711081305705
UPC:195553305709
Package Type:Retail
Warranty:3 Years
BIOS:256 Mb Flash ROM
UEFI AMI BIOS

Chipset:B550
CPU Interface:Socket AM4
CPU Support:https://www.asus.com/Motherboards-Components/Motherboards/TUF-Gaming/TUF-GAMING-B550M-PLUS-WIFI-II/HelpDesk_CPU/
RAM Technology:DDR4 (Dual Channel)
RAM Slots:4 x 288-pin
RAM Speeds:Up to DDR4 4866 (O.C.)
Max. Memory Support:128GB
PCI Express 3.0 x16:1
PCI Express 4.0 x16:1
PCI Express 3.0 x1:1
S-ATA 6Gb/s Port(s):4
RAID:Raid 0/1/10
M.2 Socket(s):1 x SATA/PCIe 4.0 x4
1 x SATA/PCIe 3.0 x4

LAN Speed:Realtek 2.5Gb
Wireless NIC:2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Bluetooth:v5.2
On-Board Audio:Realtek 7.1 Surround Sound High Definition Audio CODEC
On-Board Video:AMD processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port:1
Back USB 2.0 Port(s):2
Back USB 3.2 Port(s) Type-A Gen 1:4
Back USB 3.2 Port(s) Type-A Gen 2:1
Back USB 3.2 Port(s) Type-C Gen 2:1
Back HDMI Port(s):1
Back DisplayPort(s):1
Back LAN Port(s):1
Back Audio Jack(s):5
Back S/PDIF Output Port(s):1
Back Other Port(s):1 x Wi-Fi Module
Back Button(s):1 x BIOS FlashBack button
24-pin ATX Power:1
8-pin ATX Power:1
USB 2.0 Header(s):2
USB 3.1 Header(s) Gen 2:1
COM Port Header(s):1
Front Panel Audio Connector:1
TPM Header(s):1
Internal Other Port(s):1 x Addressable Gen 2 header
2 x AURA RGB headers

Form Factor:Micro ATX
Product Width:244mm
Product Length:244mm
Package Width:27.5cm
Package Length:28cm
Package Height:7cm
Gross Weight:1.44Kg
Special Features:AMD AM4 socket: Ready for Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors.
Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and DIGI+ VRM for maximum durability.
Comprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utility.
Ultrafast connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support.
Made for online gaming: Wi-Fi 6, Realtek 2.5Gb Ethernet, and TUF LANGuard.
Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences.

Package Contents:Motherboard
2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 Rubber package
1 x M.2 SSD screw package
1 x TUF Gaming sticker
1 x Support DVD
1 x TUF Certification card
1 x User guide
