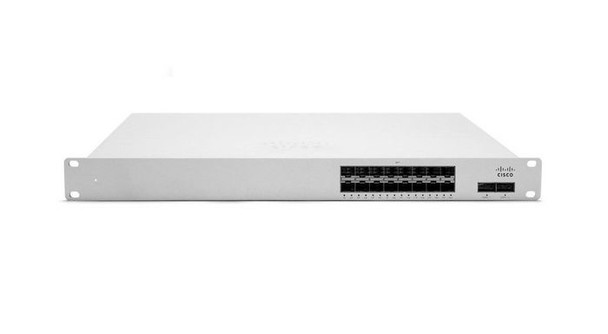

Cisco MS425-16-HW Meraki Ms425-16 Managed L3 MS425-16-HW

The Cisco Meraki MS400 Series brings powerful cloud-managed switching to the aggregation layer. This range of 1 and 10Gbps fiber aggregation switches adopts the benefits of the cloud: simplified management, reduced complexity, network wide visibility and control, and lower cost for campus deployments.

EXPANDING CLOUD MANAGEMENT TO THE CAMPUS
Cisco Meraki aggregation switches extend Meraki�s cloud management to campus eployments. Just like our access switches, these aggregation switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches. Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki
switch, just plug it in; there�s no need for complicated configuration files � or pre-staging.

INDUSTRY-LEADING CLOUD MANAGEMENT
Cloud management has a number of benefits that make it easier to build campus networks:- Centralized management that allows you to manage your entire Meraki network stack from campus aggregation to your access layer (wireless APs, switches, firewalls).
- Stack for high density fiber aggregation and manage up to tens of thousands of ports from a single pane of glass.
- Layer 7 OS, client, and hostname fingerprinting.
- E-mail and SMS (text) alerts upon power loss, downtime, or configuration changes.
- Role-based administration and automatic, scheduled firmware upgrades over the web.
- Regular feature updates and enhancements delivered on demand from the Meraki cloud.
- True zero�touch provisioning

Data transmission



Latency (10 Gbps)



1.2 �s


MAC address table



128000 entries


Switching capacity



480 Gbit/s


Design



Certification



CSA, IC, CE, C-Tick, RoHS


Product colour



White


Rack mounting



Yes


Stackable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Switch layer



L3


Switch type



Managed


Network



10G support



Yes


Broadcast storm control



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad


Number of VLANs



4095


Operational conditions



Operating temperature (T-T)



0 - 40 �C


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Packaging data



Manual



Yes


Performance



Firmware upgradeable



Yes


Ports & interfaces



QSFP+ module slots quantity



2


SFP+ module slots quantity



16


Power



AC input frequency



47/63 Hz


AC input voltage



100 - 240 V


Power consumption (typical)



175 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



48.7 cm


Product Height



4.5 cm


Product Width



48.5 cm


Security



DHCP features



DHCP server, DHCP client


IGMP snooping



Yes


Security algorithms



SNMP


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)
