D-Link
D-Link DIS-300G-12SW 12 Port L2 Managed Switch DIS-300G-12SW
(No reviews yet)
Write a Review
- UPC:
- 0790069437915
- MPN:
- DIS-300G-12SW
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Managed Customization
Features user management interfaces, including an industrial-like CLI, and WEB-based management, the DIS-300G-12SW is easy to manage and provides the security and controls to guard and shape your network needs.
Gigabit Connectivity with SFP slots
Designed with 8 x 100/1000BaseT ports and 4 x 100/1000Base SFP to suit a range of devices and network layouts.
Officially Certified
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40�C to +75�C, and can cold start from -40�C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That�s why every DIS-switch comes with a 5-year D-Link warranty.
High Availability
Rapid ring failover recovery time of < 20ms, with even faster PROFINET speeds available at project request.
Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 61 x 154 x 109 mm.
Data transmission
Jumbo frames
9000
Jumbo frames support
Yes
MAC address table
8000 entries
Store-and-forward
Yes
Design
Certification
IEC60068?2?6, IEC60068?2?27, IEC60068?2?32, UL 60950?1, CE, FCC, RoHS, WEEE
DIN rail mounting
Yes
Electromagnetic compatibility
FCC 15, EN 61000?6?2, EN 61000?6?4, EN 61000?4?2, ?3, ?4, ?5, ?6
International Protection (IP) code
IP30
LED indicators
LAN, Status
Product colour
Black
Rack mounting
No
Wall mountable
Yes
Logistics data
Harmonized System (HS) code
85176990
Management features
MIB support
RFC 1757 RMON 1,2,3,9; RFC 2674 Q MIB RFC?1213 MIB?II; RFC?1493 MIB; RFC 2233 IF MIB
Quality of Service (QoS) support
Yes
Switch layer
L2
Switch type
Managed
System event log
Yes
Traffic shaping
Yes
Web-based management
Yes
Multicast features
Multicast support
Yes
Network
10G support
No
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Broadcast storm control
Yes
Flow control support
Yes
Full duplex
Yes
Link aggregation
Yes
Networking standards
IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Number of VLANs
1024
Spanning tree protocol
Yes
Virtual LAN features
Tagged VLAN, Protocol-based VLAN, Port-based VLAN
VLAN support
Yes
Operational conditions
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
-40 - 75 �C
Storage temperature (T-T)
-40 - 85 �C
Package dimensions
Depth (package,cm)
24.7 cm
Gross Weight (Package, kg)
1.76 kg
Height (package,cm)
12 cm
Width (package,cm)
19.6 cm
Performance
Firmware upgradeable
Yes
Harmonized System (HS) code
85176990
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Fiber optic connector
LC
SFP module slots quantity
4
Power
DC input voltage
12 - 58 V
Power consumption (max)
17 Watt
Power protection features
Over current, Reverse polarity
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Product dimensions
Net Weight (Product, kg)
1.616 kg
Product Depth
15.4 cm
Product Height
10.9 cm
Product Width
6.1 cm
Security
Authentication type
IEEE 802.1x, RADIUS
DHCP features
DHCP server, DHCP snooping, DHCP relay, DHCP client
Queue scheduling algorithms
Weighted Round Robin (WRR)
Security algorithms
HTTPS, SNMP, SNMPv3, SSH
Technical details
Master (outer) cases per pallet (air)
20 pc(s)
Master (outer) cases per pallet (sea)
28 pc(s)
Pallet gross length
120 cm
Pallet gross weight (air)
346.7 kg
Pallet gross weight (sea)
478.58 kg
Pallet gross width
110 cm
Pallet height (air)
148.5 cm
Pallet height (sea)
202.5 cm
Products per pallet (air)
200 pc(s)
Products per pallet (sea)
280 pc(s)
Products per shipping (inner) case
10 pc(s)
Shipping (inner) case gross weight
16.485 kg
Shipping (inner) case gross weight
16.485 kg
Shipping (inner) case height
27 cm
Shipping (inner) case length
60 cm
Shipping (inner) case net weight
15.3 kg
Shipping (inner) case width
41 cm
Vendor information
Brand Name
D-Link
Warranty
5 Year(s)
View AllClose
Features user management interfaces, including an industrial-like CLI, and WEB-based management, the DIS-300G-12SW is easy to manage and provides the security and controls to guard and shape your network needs.
Gigabit Connectivity with SFP slots
Designed with 8 x 100/1000BaseT ports and 4 x 100/1000Base SFP to suit a range of devices and network layouts.
Officially Certified
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40�C to +75�C, and can cold start from -40�C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That�s why every DIS-switch comes with a 5-year D-Link warranty.
High Availability
Rapid ring failover recovery time of < 20ms, with even faster PROFINET speeds available at project request.
Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 61 x 154 x 109 mm.
Data transmission
Jumbo frames
9000
Jumbo frames support
Yes
MAC address table
8000 entries
Store-and-forward
Yes
Design
Certification
IEC60068?2?6, IEC60068?2?27, IEC60068?2?32, UL 60950?1, CE, FCC, RoHS, WEEE
DIN rail mounting
Yes
Electromagnetic compatibility
FCC 15, EN 61000?6?2, EN 61000?6?4, EN 61000?4?2, ?3, ?4, ?5, ?6
International Protection (IP) code
IP30
LED indicators
LAN, Status
Product colour
Black
Rack mounting
No
Wall mountable
Yes
Logistics data
Harmonized System (HS) code
85176990
Management features
MIB support
RFC 1757 RMON 1,2,3,9; RFC 2674 Q MIB RFC?1213 MIB?II; RFC?1493 MIB; RFC 2233 IF MIB
Quality of Service (QoS) support
Yes
Switch layer
L2
Switch type
Managed
System event log
Yes
Traffic shaping
Yes
Web-based management
Yes
Multicast features
Multicast support
Yes
Network
10G support
No
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Broadcast storm control
Yes
Flow control support
Yes
Full duplex
Yes
Link aggregation
Yes
Networking standards
IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Number of VLANs
1024
Spanning tree protocol
Yes
Virtual LAN features
Tagged VLAN, Protocol-based VLAN, Port-based VLAN
VLAN support
Yes
Operational conditions
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
-40 - 75 �C
Storage temperature (T-T)
-40 - 85 �C
Package dimensions
Depth (package,cm)
24.7 cm
Gross Weight (Package, kg)
1.76 kg
Height (package,cm)
12 cm
Width (package,cm)
19.6 cm
Performance
Firmware upgradeable
Yes
Harmonized System (HS) code
85176990
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Fiber optic connector
LC
SFP module slots quantity
4
Power
DC input voltage
12 - 58 V
Power consumption (max)
17 Watt
Power protection features
Over current, Reverse polarity
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Product dimensions
Net Weight (Product, kg)
1.616 kg
Product Depth
15.4 cm
Product Height
10.9 cm
Product Width
6.1 cm
Security
Authentication type
IEEE 802.1x, RADIUS
DHCP features
DHCP server, DHCP snooping, DHCP relay, DHCP client
Queue scheduling algorithms
Weighted Round Robin (WRR)
Security algorithms
HTTPS, SNMP, SNMPv3, SSH
Technical details
Master (outer) cases per pallet (air)
20 pc(s)
Master (outer) cases per pallet (sea)
28 pc(s)
Pallet gross length
120 cm
Pallet gross weight (air)
346.7 kg
Pallet gross weight (sea)
478.58 kg
Pallet gross width
110 cm
Pallet height (air)
148.5 cm
Pallet height (sea)
202.5 cm
Products per pallet (air)
200 pc(s)
Products per pallet (sea)
280 pc(s)
Products per shipping (inner) case
10 pc(s)
Shipping (inner) case gross weight
16.485 kg
Shipping (inner) case gross weight
16.485 kg
Shipping (inner) case height
27 cm
Shipping (inner) case length
60 cm
Shipping (inner) case net weight
15.3 kg
Shipping (inner) case width
41 cm
Vendor information
Brand Name
D-Link
Warranty
5 Year(s)
Additional Information
Shipping: |
Available to Order - Call for ETA |
Delivery: |
Available to Order - Call for ETA |
Related Products

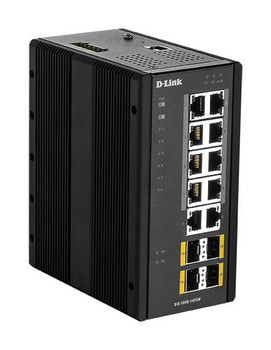

D-Link DIS-300G-14PSW 14 Port L2 Managed Switch DIS-300G-14PSW
D-Link
£1,625.40
Managed Customization
Features user management interfaces, including an industrial-like CLI, and WEB-based management, the DIS-300G-14PSW is easy to manage and provides the security and controls to...
D-Link DIS-200G-12S 12 Port L2 Industrial Smart DIS-200G-12S
D-Link
£732.59
The DIS-200G-12S Layer 2 Industrial Managed Switch is equipped with 10 10/100/1000BASE-T ports and 2 SFP ports. This switch features a robust design making it ideal for deployment in industrial and...

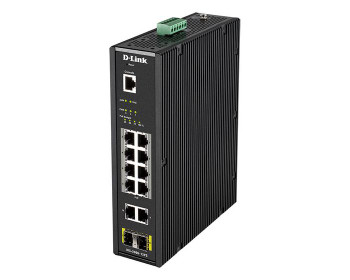

D-Link DIS-200G-12PS 12 Port L2 Industrial Smart DIS-200G-12PS
