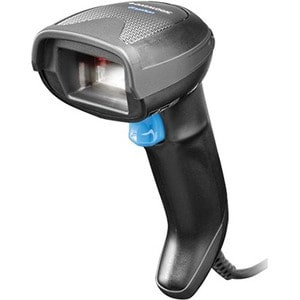

Datalogic Gryphon I Gd4520. Type: Handheld Bar Code Reader Scanner Type: 1D/2D S GD4520-BKK1-HD-DRA

Datalogic Gryphon I GD4520. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black, International Protection (IP) code: IP52, Protection features: Drop proof. Power source type: DC, Battery technology: Lithium-Ion (Li-Ion), Input voltage: 5 V. Weight: 161 g, Width: 68 mm, Depth: 109 mm IMAGING TECHNOLOGY The Gryphon 4500 series represents the premium range of handheld scanners from Datalogic for value added applications. Designed with people in mind, the Gryphon 4500 series stands out with its elegant and cutting edge design, the unchallenged ergonomics, and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance. TOP TECHNOLOGIES FOR TODAY'S POS Perfect for both hand held and presentation reading, the Gryphon I GD4500 imager exploits Datalogic's Motionix motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering more operational choices. Both the aimer and sensor can be programmed to the user's desired preferences. Datalogic distinctive reading technology with highly visible white illumination is easier on the human eyes and reads colored labels better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer's center cross provides a locator for targeted scanning in a multiple bar code environment. SIMPLE TO USE AND DEPLOY The Gryphon I GD4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. High Density (HD) models are also available for reading smaller, condensed codes. A dedicated version with red illumination optics reads Digital Watermarking. For mobile marketing or ticketing applications, this imager also offers excellent performance when reading bar codes from mobile devices. The enhanced optics offer improved motion tolerance and high speed imaging to read fast moving codes.
Interfaces/Ports

Host InterfaceUSB

Technical Information

Barcode Symbology Supported
1D:Auto discriminates all standard 1D codes including GS1 DataBar linear codes.

2D:Aztec Code
China Han Xin Code
Data Matrix
MaxiCode
Micro QR Code
QR Code
Dot Code

Postal Codes:Australian Post
British Post
China Post
IMB
Japanese Post
KIX Post
Planet Code
Postnet
Royal Mail Code (RM4SCC)

Stacked Codes:EAN/JAN Composites
GS1 DataBar Composites
GS1 DataBar Expanded Stacked
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional
MacroPDF
MicroPDF417
PDF417
UPC A/E Composites

Digital Watermarking:Digimarc Barcodes

Connectivity TechnologyCable
FeaturesBeep
Grayscale Image Capture
Notification LED
Ergonomic Design
3GL
Scanning Distance398.78 mm
Light SourceLaser
Image FormatsJPEG
BMP
TIFF
Scanner RangeHigh Density
Drop Specification
Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface.

Scan PatternOmni-directional
Image Sensor TypeImager
Illumination TypeLED
Illumination ColorWhite
Cable Type IncludedUSB
Scanning Capability2D
1D
Reading Angle (Skew)65??
Reading Angle (Pitch)65??
Reading Angle (Roll)360??
Motion Tolerance889 mm/s
Maximum Ambient Light100000 lux
Minimum Print Contrast15%
Minimum Element Resolution (Code 39)0.08 mm
Maximum Element Resolution (Code 39)0.13 mm
Minimum Element Resolution (DataMatrix)0.13 mm
Maximum Element Resolution (DataMatrix)0.25 mm
Minimum Element Resolution (PDF417)0.10 mm
Maximum Element Resolution (PDF417)0.25 mm
Air Electrostatic Discharge (+/-)16kV
Image Sensor Resolution1280 x 800


Physical Characteristics

Weight (Approximate)161 g
DurabilityDrop Resistant
Form FactorHandheld
Product ColorBlack
Color FamilyBlack

General Information

Product TypeBarcode Scanner Kit
Manufacturer Part NumberGD4520BKK1HDDRA
datalogic
ManufacturerDatalogic S.p.A
Product ModelGD4520
Product NameGryphon I GD4520 Barcode Scanner Kit
Product LineGryphon I
Product SeriesGD4500
Brand NameDatalogic

Miscellaneous

Application/UsageLaboratory
Pharmacy
Commercial Service
Light/Clean Manufacturing
Transportation
Retail
Healthcare
Package ContentsGryphon I GD4520 Barcode Scanner
USB Cable 90A052258

Ingress Protection (IP) RatingIP52
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
China Restriction of Hazardous Substances (China RoHS)
