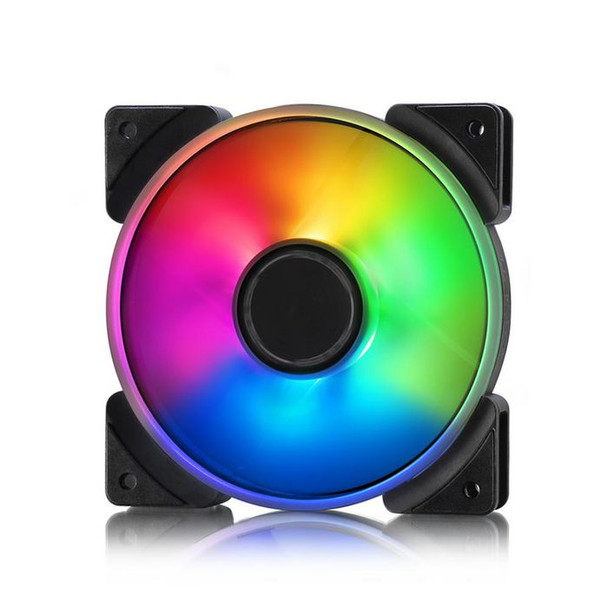

Fractal Design FD-FAN-PRI-AL12-3P Prisma Al-12 3P Computer Case FD-FAN-PRI-AL12-3P

Fractal Design Prisma AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan�s entire surface.

Support for ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome allows precision software control, enabling Prisma to synergize perfectly with your components. Those wanting more physical control can pair Prisma with the Adjust R1 controller to switch between colors, brightness, and motion effects with the push of button.

As with any Fractal Design fan, silence remains a central focus with integrated vibration damping corners, silent LLS bearings, and PWM options for complete control over the speed of your fans, ensuring Prisma is seen, not heard.

Design



Fan connector



3-pin


Illumination colour



Multi


Illumination LED



Yes


Number of fan blades



7


Number of LEDs



6


Product colour



Black, White


Logistics data



Harmonized System (HS) code



84733080


Package dimensions



Depth (package,cm)



12.2 cm


Gross Weight (Package, kg)



0.22 kg


Height (package,cm)



3 cm


Width (package,cm)



18.2 cm


Performance



Airflow



86.02 m�/hr


Fan diameter



12 cm


Maximum air pressure



1.27 mmH2O


Maximum airflow



50.63 cfm


Mean time between failures (MTBF)



100000 Hour


Noise level (high speed)



19.5 dB


Quantity per pack



1 pc(s)


Rotational speed (max)



1200 RPM


Suitable location



Computer case


Type



Fan


Power



LED voltage



5 V


Power supply



1.2 Watt


Rated current



0.1 A


Starting voltage



7 V


Voltage



12 V


Product dimensions



Net Weight (Product, kg)



0.17 kg


Product Depth



2.5 cm


Product Height



12 cm


Product Width



12 cm


Vendor information



Brand Name


Fractal Design


Warranty



1 Year(s)


Weight & dimensions



Cable length



0.5 m
