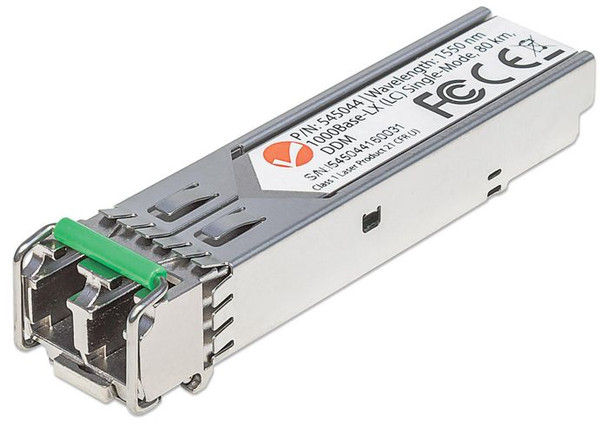

Intellinet 545044 Transceiver Module Optical. 545044

Gigabit Fibre SFP Optical Transceiver Module _x000D_
_x000D_
The new line of Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceivers provides customers with a combination of performance and affordability. These mini-GBIC (Gigabit Interface Converter) modules come in a metal housing that reduces electromagnetic interference and increases their durability. _x000D_
_x000D_
Small Size for High-Density Fibre Connections _x000D_
The transceiver comes in a mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet and/or computer room. _x000D_
_x000D_
Compatibility _x000D_
Compatibility in your network is everything, and the Intellinet Network Solutions SFP Transceiver Module (model 545044) delivers. Use it with any Intellinet Network Solutions SFP equipped network switch or any other MSA compliant SFP enabled switch. And since the Intellinet Network Solutions SFP transceiver module is set to broadcast the vendor pn GLC-ZX-SMD, compatibility to your Cisco gear is provided. _x000D_
_x000D_
Hot-Pluggable _x000D_
The Intellinet Network Solutions Gigabit Fibre SFP Optical Transceiver Module (model 545044) is fully hot-pluggable, and that allows you to install the module without rebooting your network switch for uninterrupted network traffic. _x000D_
_x000D_
Digital Diagnostics Monitoring (DDM) _x000D_
The Intellinet Network Solutions Gigabit Fibre SFP Optical Transceiver Module (model 545044) supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). This gives the user the ability to monitor parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage, in real time.

Features



Certification



FCC Class A, CE Mark


Hot-Plug support



Yes


Product colour



Silver


Logistics data



Harmonized System (HS) code



85369010


Operational conditions



Operating relative humidity (H-H)



10 - 85 %


Operating temperature (T-T)



0 - 70 �C


Storage temperature (T-T)



-40 - 85 �C


Package dimensions



Gross Weight (Package, kg)



0.03 kg


Packaging data



Number of products included



1 pc(s)


Performance



Duplex system



Full


Ethernet interface type



Gigabit Ethernet


Ethernet LAN



Yes


Fiber cable diameters supported (core/cladding)



9/125


Fiber optic connector



LC


Interface type



SFP


Link budget



22 dB


Maximum data transfer rate



1000 Mbit/s


Maximum transfer distance



80000 m


Networking standards



IEEE 802.3z


SFP transceiver type



Fiber optic


Single-mode fiber (SMF) supported



Yes


Tx power (max)



5 dBmW


Tx power (min)



-2 dBmW


Wavelength



1550 nm


Power



Input voltage



3.3 V


Power consumption (typical)



1 Watt


Product dimensions



Net Weight (Product, kg)



0.02 kg


Product Depth



5.7 cm


Product Height



1.2 cm


Product Width



1.4 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Intellinet


Warranty



1 Year(s)
