Intellinet

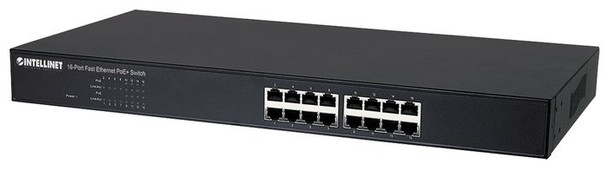

Intellinet 560771 16-Port Fast Ethernet Poe+ 560771
- UPC:
- 0000000000000
- MPN:
- 560771
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Deliver Power over Ethernet to remote devices. _x000D_
_x000D_
The Intellinet Network Solutions PoE+ Office Switch, Model 560771, is equipped with 16 10/100Base-TX Fast Ethernet ports, eight of which support 802.3af/at Power over Ethernet (PoE/PoE+). Besides being a versatile network LAN switch, it also provides a Power over Ethernet option that supplies power injection to 802.3af/at-compliant devices, such as IP phones, wireless access points and network cameras. _x000D_
_x000D_
Power over Ethernet 802.3at _x000D_
The Intellinet Network Solutions 16-Port Fast Ethernet Rackmount PoE+ Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimising the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest the use of an Intellinet Network Solutions PoE/PoE+ Splitter. _x000D_
_x000D_
Optimum Performance _x000D_
Besides providing Power over Ethernet functionality, the PoE Office Switch has some very impressive features as a switch. For starters, the auto features of this switch make installation Plug and Play and hassle free. No configuration is required. Auto-MDI/MDI-X crossover on all ports eliminates the need for crossover cables for connection to another switch or hub. Auto-negotiation on each port senses the link speed of a network device (either 10 or 100) and intelligently adjusts for compatibility and optimal performance. _x000D_
_x000D_
* Total PoE budget for this switch is 58 watts. Per-port average power distribution is 7.25 watts; maximum per-port power usage cannot exceed 30 watts.
Data transmission
Forwarding rate
0.1488 Mpps
Design
Certification
FCC Class A, CE
Form factor
1U
Housing material
Metal
LED indicators
Y, Yes
Product colour
Black
Rack mounting
Yes
Logistics data
Harmonized System (HS) code
85176990
Network
Cable types supported
Cat3, Cat4, Cat5
Flow control support
Yes
Full duplex
Yes
Networking standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Operational conditions
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
0 - 40 �C
Storage temperature (T-T)
-20 - 90 �C
Package dimensions
Gross Weight (Package, kg)
4.75 kg
Packaging data
Cables included
AC
Manual
Yes
Rack mount kit
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (max)
65 Watt
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Product dimensions
Net Weight (Product, kg)
3.65 kg
Product Depth
22 cm
Product Height
4.4 cm
Product Width
44 cm
Vendor information
Brand Name
Intellinet
Warranty
1 Year(s)
View AllClose
_x000D_
The Intellinet Network Solutions PoE+ Office Switch, Model 560771, is equipped with 16 10/100Base-TX Fast Ethernet ports, eight of which support 802.3af/at Power over Ethernet (PoE/PoE+). Besides being a versatile network LAN switch, it also provides a Power over Ethernet option that supplies power injection to 802.3af/at-compliant devices, such as IP phones, wireless access points and network cameras. _x000D_
_x000D_
Power over Ethernet 802.3at _x000D_
The Intellinet Network Solutions 16-Port Fast Ethernet Rackmount PoE+ Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimising the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest the use of an Intellinet Network Solutions PoE/PoE+ Splitter. _x000D_
_x000D_
Optimum Performance _x000D_
Besides providing Power over Ethernet functionality, the PoE Office Switch has some very impressive features as a switch. For starters, the auto features of this switch make installation Plug and Play and hassle free. No configuration is required. Auto-MDI/MDI-X crossover on all ports eliminates the need for crossover cables for connection to another switch or hub. Auto-negotiation on each port senses the link speed of a network device (either 10 or 100) and intelligently adjusts for compatibility and optimal performance. _x000D_
_x000D_
* Total PoE budget for this switch is 58 watts. Per-port average power distribution is 7.25 watts; maximum per-port power usage cannot exceed 30 watts.
