Moxa
Moxa 46044 PoE+ GIGABIT INJECTOR 60W IEEE 46044
- UPC:
- 5703431460447
- MPN:
- 46044
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description

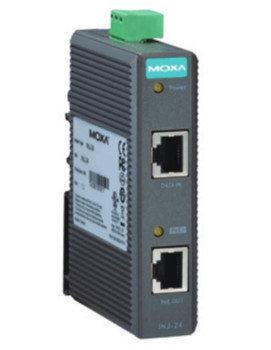

The INJ-24A is a Gigabit High Power PoE+ Injectors that combines power and data and delivers them to a powered device over one Ethernetcable. Designed for power-hungry devices, the INJ-24 injector provides up to 60 watts, twice as much as conventional PoE+ injectors. It features DIP switch configurator and LED indicator for PoE management, and also supports 24/48 VDC power inputs for power redundancy and operational flexibility. The -40 to 75oC wide temperature range design makes the INJ-24 perfect for operating in critical industrial environments.
- High power mode provides up to 60 W;
- DIP switch configurator and LED indicator for PoE management;
- 3KV surge resistance for harsh environments;
- Mode A and Mode B selectable for flexible installation;
- Built-in 24/48 VDC booster for redundant dual power inputs;
- 40 to 75�C operating temperature range (T model).
Design
Certification
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, FCC Part 15 Subpart B Class A, EN 55022 Class A
LED indicators
Y, Yes
Product colour
Metallic
Network
Cabling technology
10/100/1000Base-T(X)
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Wi-Fi
No
Operational conditions
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
-40 - 75 �C
Storage temperature (T-T)
-40 - 85 �C
Package dimensions
Gross Weight (Package, kg)
0.245 kg
Performance
Mean time between failures (MTBF)
2407739 Hour
Type
Network repeater
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
Power
AC input voltage
12-48 V
Input current
3.72 A
Power over Ethernet (PoE)
Yes
Product dimensions
Net Weight (Product, kg)
0.145 kg
Product Depth
7.88 cm
Product Height
11.5 cm
Product Width
3.03 cm
Vendor information
Brand Name
Moxa
Warranty
2 Year(s)
View AllClose
- High power mode provides up to 60 W;
- DIP switch configurator and LED indicator for PoE management;
- 3KV surge resistance for harsh environments;
- Mode A and Mode B selectable for flexible installation;
- Built-in 24/48 VDC booster for redundant dual power inputs;
- 40 to 75�C operating temperature range (T model).
Design
Certification
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, FCC Part 15 Subpart B Class A, EN 55022 Class A
LED indicators
Y, Yes
Product colour
Metallic
Network
Cabling technology
10/100/1000Base-T(X)
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Wi-Fi
No
Operational conditions
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
-40 - 75 �C
Storage temperature (T-T)
-40 - 85 �C
Package dimensions
Gross Weight (Package, kg)
0.245 kg
Performance
Mean time between failures (MTBF)
2407739 Hour
Type
Network repeater
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
Power
AC input voltage
12-48 V
Input current
3.72 A
Power over Ethernet (PoE)
Yes
Product dimensions
Net Weight (Product, kg)
0.145 kg
Product Depth
7.88 cm
Product Height
11.5 cm
Product Width
3.03 cm
Vendor information
Brand Name
Moxa
Warranty
2 Year(s)
