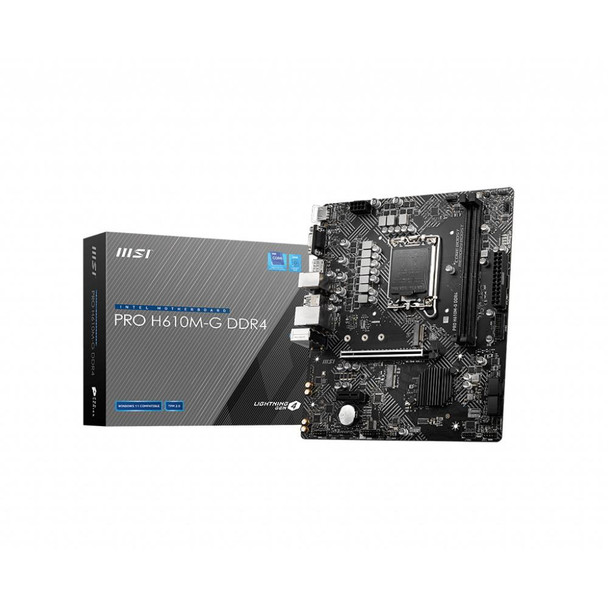

Msi PRO H610M-G DDR4 Socket 1700/H610/Ddr4/S-Ata 600/Micro Atx PRO H610M-G DDR4

MSI 1700 PRO H610M-G DDR4 M-ATX
SKU: 121220
Product Group:Motherboards
Manufacturer:MSI
SKU:121220
Product Name:MSI PRO H610M-G DDR4 (Socket 1700/H610/DDR4/S-ATA 600/Micro ATX)
Web Address:uk.msi.com
Model Number:PRO H610M-G DDR4
EAN:4719072925024
UPC:824142278789
Package Type:Retail
Warranty:3 Years
Chipset:Intel H610
CPU Interface:Socket 1700
CPU Support:https://www.msi.com/Motherboard/PRO-H610M-G-DDR4/support#support-cpu
RAM Technology:DDR4 (Dual Channel)
RAM Slots:2 x 288-pin
RAM Speeds:Up to DDR4 3200
Max. Memory Support:64GB
PCI Express 4.0 x16:1
PCI Express 3.0 x1:1
S-ATA 6Gb/s Port(s):4
M.2 Socket(s):1 x SATA/PCIe 3.0 x4
On-Board LAN:1 x Intel I219V 1Gbps LAN controller
On-Board Audio:Realtek ALC892/ ALC897 Codec
On-Board Video:Intel processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port:1
Back USB 2.0 Port(s):4
Back USB 3.2 Port(s) Type-A Gen 1:2
Back VGA Port(s):1
Back HDMI Port(s):1
Back DisplayPort(s):1
Back LAN Port(s):1
Back Audio Jack(s):3
24-pin ATX Power:1
8-pin ATX Power:1
TPM Header(s):1
Internal Other Port(s):1 x 4-pin RGB LED connector
2 x 3-pin RAINBOW LED connectors
4 x EZ Debug LED

Form Factor:Micro ATX
Product Width:202mm
Product Length:236mm
Package Width:26cm
Package Length:26cm
Package Height:5.5cm
Gross Weight:0.77Kg
Special Features:Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket.
Supports DDR4 Memory, up to 3200(MAX) MHz.
Core Boost: With premium layout and digital power design to support more cores and provide better performance.
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
Lightning-Fast Experience: PCIe 4.0.
Audio Boost: Reward your ears with studio grade sound quality.
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Package Contents:Motherboard
Quick Installation Guide
M.2 Clip
2 x SATA Cables
IO Shield
Driver Disk
MSi Case Badge
