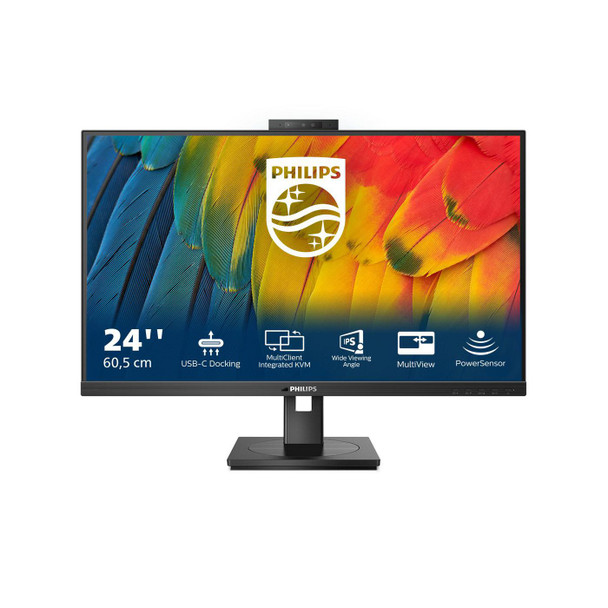

Philips 24B1U5301H/00 24B1U5301H 23.8 IN 60.5 CM IPS 24B1U5301H/00

This USB-C monitor is for data transfer, power delivery and watching videos. The integrated 5 MP webcam delivers sharp images, and the noise cancelling mic lets people hear you fine. Windows Hello Webcam for quick access and strong security.

Design



Feet colour



Black


Front bezel colour



Black


Market positioning



Business


Product colour



Black


Display



Anti-glare screen



Yes


Backlight type



W-LED


Colour depth



8 bit


Contrast ratio (dynamic)



50000000:1


Contrast ratio (typical)



1000:1


DDC/CI



Yes


Display brightness (typical)



300 cd/m�


Display diagonal



23.8 "


Display diagonal (metric)



60.5 cm


Display number of colours



16.7 million colours


Display resolution



1920 x 1080 Pixels


Display sRGB



Yes


Display technology



LCD


Dynamic contrast ratio marketing name



SmartContrast


Haze rate



25 %


HD type



Full HD


Horizontal scan range



30 - 85 kHz


Maximum refresh rate



75 Hz


Native aspect ratio



16:9


NTSC coverage (typical)



88 %


Panel type



IPS


Pixel density



93 ppi


Pixel pitch



0.2745 x 0.2745 mm


Response time



4 Millisecond


RGB colour space



sRGB


Screen shape



Flat


sRGB coverage (typical)



105 %


Surface hardness



3H


Touchscreen



No


Vertical scan range



48 - 75 Hz


Viewable size, horizontal



52.704 cm


Viewable size, vertical



29.646 cm


Viewing angle, horizontal



178 �


Viewing angle, vertical



178 �


Ergonomics



Cable lock slot



Yes


Height adjustment



Yes


Height adjustment



15 cm


LED indicators



Operation, Stand-by


On Screen Display (OSD) languages



Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian


Panel mounting interface



100 x 100


Picture-in-Picture



Yes


Pivot



Yes


Pivot angle



-90 - 90 �


Plug and Play



Yes


Swivel angle range



-180 - 180 �


Swivelling



Yes


Tilt adjustment



Yes


Tilt angle range



-5 - 30 �


VESA mounting



Yes


Multimedia



Built-in camera



Yes


Built-in microphone



Yes


Built-in speaker(s)



Yes


Megapixel (approx.)



5 MP


Number of speakers



2


RMS rated power



5 Watt


Network



Ethernet LAN



Yes


Operational conditions



Non-operating altitude



3658 - 12192 m


Operating altitude



0 - 3658 m


Operating relative humidity (H-H)



20 - 80 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-20 - 60 �C


Other features



EasyRead mode



Yes


Ethernet LAN data rates



10, 100, 1000


Exterior finish type



Textured


Light sensor



Yes


LowBlue mode



Yes


Mean time between failures (MTBF)



70000 Hour


Picture enhancement



SmartImage


Picture-by-Picture (PbP)



Yes


Recyclable packaging material



100 %


Regulatory Approvals



CB; CE Mark; FCC Class B; ICES-003; CU-EAC; EAEU RoHS; TUV Ergo; TUV/GS; TUV Eye Comfort certified; cETLus


Wake-on-LAN



Yes


Package dimensions



Depth (package,cm)



19.8 cm


Gross Weight (Package, kg)



8.32 kg


Height (package,cm)



40.6 cm


Width (package,cm)



60 cm


Packaging content



Bundled software



SmartControl


Cables included



HDMI, DisplayPort, USB Type-C, AC


Manual



Yes


Stand included



Yes


Performance



AMD FreeSync



No


Compatible operating systems



Mac OS X Windows 11 / 10 / 8.1 / 8 / 7


Component video sync



Separate sync


Fast charging



Yes


Fast charging technology



Power Delivery


Flicker-free technology



Yes


HBR3 support



Yes


Low Blue Light technology



Yes


NVIDIA G-SYNC



No


Ports & interfaces



Built-in USB hub



Yes


DisplayPort output



Yes


DisplayPort version



1.4


DisplayPorts quantity



1


HDCP



Yes


HDCP version



1.4/2.2


HDMI



Yes


HDMI ports quantity



1


HDMI version



1.4


Headphone out



Yes


Number of upstream ports



1


USB hub version



3.2 Gen 2 (3.1 Gen 2)


USB Power Delivery



Yes


USB Power Delivery up to



90 Watt


USB Type-A downstream ports quantity



4


USB Type-C DisplayPort Alternate Mode



Yes


USB Type-C downstream ports quantity



1


USB upstream port type



USB Type-C


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Energy consumption (SDR) per 1000 hours



18 kWh


Energy efficiency class (SDR)



E


Energy efficiency scale



A to G


Power consumption (standby)



0.3 Watt


Power consumption (typical)



15.3 Watt


Power supply type



Internal


Product dimensions



Net Weight (Product, kg)



7 kg


Recycling data



Post-consumer recycled plastic



85 %


Sustainability



Doesn't contain



Mercury, PVC/BFR


Sustainability certificates



ENERGY STAR, TCO, RoHS


Sustainability compliance



Yes


Vendor information



Brand Name


Philips


Weight & dimensions



Depth (with stand)



20.5 cm


Depth (without stand)



5.1 cm


Height (with stand)



50 cm


Height (without stand)



32.3 cm


Weight (with stand)



5.5 kg


Weight (without stand)



3.9 kg


Width (with stand)



54 cm


Width (without stand)



54 cm
