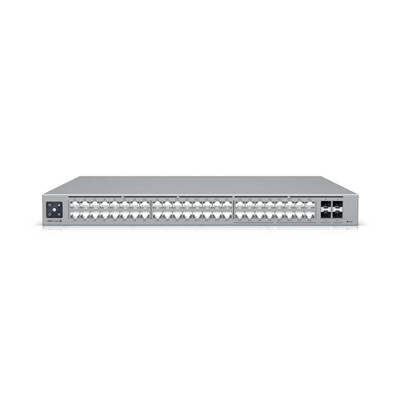

Ubiquiti Unifi Pro Max 48 Poe Network Switch - USW-PRO-MAX-48-POE USW-Pro-Max-48-PoE

Ubiquiti UniFi USW-Pro-Max-48-POE Pro Max 48 PoE Network Switch


48-port switch x 2.5 GbE ports including (8) PoE+ and (8) PoE++
32 x GbE ports including (24) PoE+ and (8) PoE++
4 x 10G SFP+ ports
Layer 3
Etherlighting ports that illuminate
DC power backup ready
720W total PoE availability

The USW-Pro-Max-48-PoE is a powerful 48-port Layer 3 Etherlighting switch, designed for high-power PoE++ output. This switch is an ideal choice for networks requiring extensive power delivery and high-speed connectivity.

USW-Pro-Max-48-PoE includes Etherlighting ports that illuminate for easy identification of port location, speed/link, and native VLAN/network. This feature, especially when used with UniFi Etherlighting Patch Cables, enhances visibility for easier network management.

The USW-Pro-Max-48-PoE switch has 16 x 2.5 GbE ports, including 8 x PoE+ and 8 x PoE++, and 32 x GbE ports, with 24 x PoE+ and 8 x PoE++, offering versatile options for powering devices. Also includes 4 x 10G SFP+ ports, ensuring high-speed uplink capabilities for data-intensive operations.

USW-Pro-Max-48-PoE has a total non-blocking throughput of 112 Gbps and a switching capacity of 224 Gbps.

Specification

Mechanical

Weight & Dimensions
442.4 x 399.6 x 43.7 mm (17.4 x 15.7 x 1.7")
WeightWithout mounting brackets: 6.2 kg (13.7 lb)
With mounting brackets: 6.3 kg (13.9 lb)

Enclosure material
SGCC steel

Hardware

Management interface
Ethernet In-Band

Networking interface
(32) GbE RJ45 ports
(16) 1/2.5 GbE RJ45 ports
(4) 10G SFP+ ports

PoE interface
(32) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

Total non-blocking throughput2 Gbps

Switching capacity
224 Gbps

Power method
Universal input, 100—240V AC, 50/60 Hz
USP RPS DC input

Power supply
AC/DC, internal, 820W

Supported voltage range0—240V AC

Max. power consumption0W (Excluding PoE output)

Total available PoE
720W

Max. PoE wattage per port by PSE
PoE: 15.4W
PoE+: 30W
PoE++: 60W

Voltage range PoE mode
PoE: 44—57V
PoE+: 50—57V

LCM display
(1) 1.3" touchscreen

Button
Factory reset

Operating temperature
-5 to 40° C (23 to 104° F)

Operating humidity to 90% noncondensing

Certifications
CE, FCC, IC

Etherlighting

Ethernet
Locating
Speed/link
Native VLAN/network

SFP+
Locating
Speed/link
Native VLAN/network

LEDs

System
Status

RPS
Status

Box Contents
1 x USW-Pro-Max-48-PoE Switch
4 x rubber feet
1 x UK power cable
1 x Pair rackmount ears
1 x Rackmount accessories
