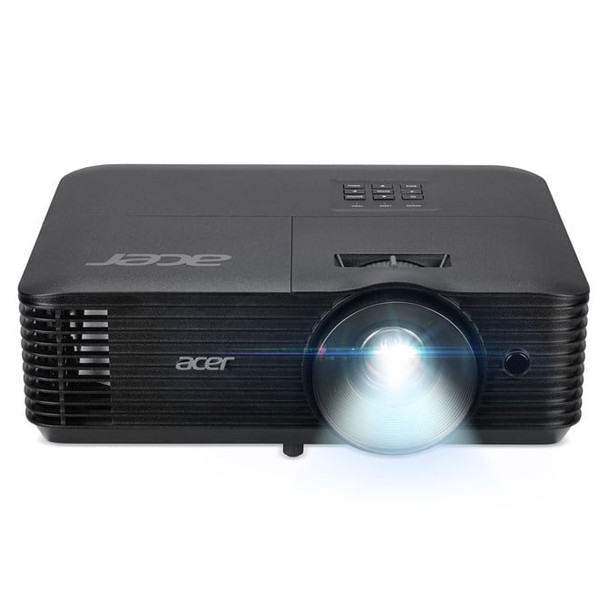

Acer X139 WUXGA 16:10 5000lm DLP Projector MR.JX611.010

Specs




Projector


Screen size compatibility

The different screen sizes which the device can work with.

685.8 - 7620 mm (27 - 300")


Projection distance

The maximum length at which an image can be projected.

1 - 10 m


Projector brightness

5000 ANSI lumens


Projection technology

DLP


Projector native resolution

WUXGA (1920x1200)


Contrast ratio (typical)

The difference in light intensity between the brightest white and the darkest black.
000:1


Native aspect ratio

The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.
:10


Number of colours

1.07 billion colours


Horizontal scan range
- 100 kHz


Vertical scan range

24 - 120 Hz


Keystone correction, horizontal

-40 - 40°


Keystone correction, vertical

-40 - 40°


Light source


Light source type

Lamp


Service life of light source

5000 h


Service life of light source (economic mode)
000 h


Light source brightness

5000 lm


Lamp type

The characteristics of the lamp.

DLP


Lamp power

240 W


Lens system


Focus

Manual


Focal length range

Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f?) gives the distance from the front and rear principal planes (H and H?) to the corresponding focal points (F and F?).

21.85 - 24 mm


Zoom capability

The amount that the camera lens can zoom.




Zoom type

Manual


Zoom ratio

Measures how much the camera can adjust its focus for distance shots. A 3x zoom ratio changes the camera's focal length by a factor of three, from 35 mm to 105 mm for example.

1.1:1


Video


Analog signal format system

The supported protocols for exchanging analog signals.

NTSC 3.58, NTSC 4.43, PAL B, PAL D, PAL G, PAL I, PAL M, PAL N, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L


Digital signal format system

The protocols supported for exchange of digital signal.

HDTV


Ports & interfaces


HDMI version

1.4b


USB 2.0 Type-A ports quantity

2


Audio (L/R) in

The two sockets (ports) for receiving left audio signal (white cable) and right audio signal (red cable).

1


Audio (L/R) out

The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable).

1



Ports & interfaces


Serial interface type

RS-232


VGA (D-Sub) ports quantity

Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.

1


HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

2


Composite video in

The socket (port) for the composite video input (white cable).

1


Component video (YPbPr/YCbCr) in

The number of sockets (ports) for RF (radio frequency) connections into the product.

1


Features


Noise level

The amplitude level of the undesired background noise, usually measured in decibels (db).

27 dB


Multimedia


Built-in speaker(s)

The device contains speaker(s) to produce sound.




RMS rated power

RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.

3 W


Number of built-in speakers

1


Design


Product type

The sub-category of the product.

Standard throw projector


Product colour

The colour e.g. red, blue, green, black, white.

Black


Cable lock slot

Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.




Cable lock slot type

Kensington


Display


Built-in display

A display which is part of the product, so you do not need to attach another display.




Power


Power source

What is providing power for the product e.g. mains electricity.

AC


Power consumption (typical)

Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

275 W


Power consumption (standby)

The amount of electricity that is consumed when the product is on standby.

0.5 W


Power consumption (economy mode)
5 W


AC input voltage

The voltage of the AC electricity that is inputted into the product.
0 - 240 V


Weight & dimensions


Width

The measurement or extent of something from side to side.

313 mm


Depth

The distance from the front to the back of something.

240 mm


Height

The measurement of the product from head to foot or from base to top.
3.7 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

2.7 kg


Packaging content


Remote control included

Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.




Batteries included




Cables included

Power, VGA


Manual
