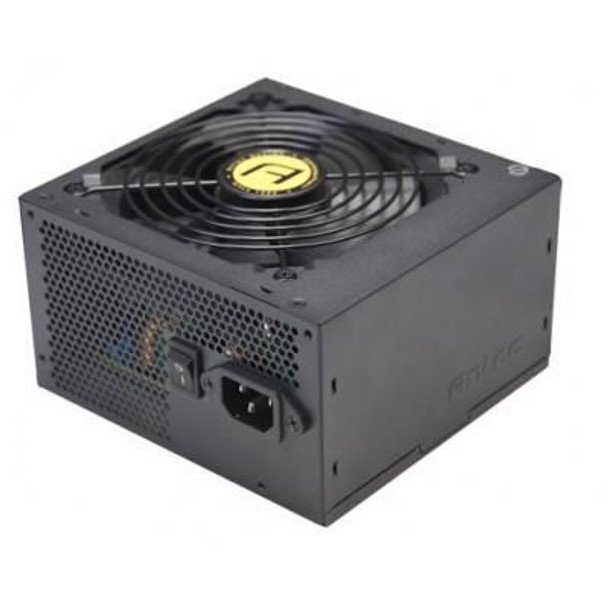

Antec 0-761345-05652-6 NeoECO 650C 650W 80+ Bronze 0-761345-05652-6

Get economical power today with the NeoECO Classic, Antec's high-efficiency power supply solution. Featuring 80 PLUS� BRONZE certification, a quiet 120 mm DBB fan, All Japanese capacitors and Universal Input with Active Power Factor Correction, NeoECO Classic gives you a cooler, quieter system, all powered by Continuous Power.

Design



Cooling type



Active


Fan diameter



12 cm


Fan location



Top


Number of fans



1 fan(s)


Product colour



Black


Other features



Harmonized System (HS) code



84733020


Package dimensions



Gross Weight (Package, kg)



2.26 kg


Performance



80 PLUS certification



80 PLUS Bronze


Power supply unit (PSU) form factor



ATX


Purpose



PC


RoHS compliance



Yes


Safety



cTUVus, FCC, T�V, CE, CB, EAC, RCM


Ports & interfaces



CPU power connector (4+4 pin)



Yes


Floppy drive power connector



1


Motherboard power connector



20+4 pin ATX


Number of SATA power connectors



8


PCI Express power connectors (6+2 pin)



2


Peripheral (Molex) power connectors (4-pin)



3


Power



AC input frequency



47 - 63 Hz


AC input voltage



100 - 240 V


Combined power (+12V)



600 Watt


Combined power (+3.3V)



120 Watt


Combined power (+5V)



120 Watt


Combined power (+5Vsb)



12.5 Watt


Combined power (-12V)



3.6 Watt


Efficiency



88 %


Input current



5 - 10 A


Max output current (+12V)



50 A


Max output current (+3.3V)



20 A


Max output current (+5V)



17 A


Max output current (+5Vsb)



2.5 A


Max output current (-12V)



0.3 A


Power Factor Correction (PFC) type



Active


Total power



650 Watt


Product dimensions



Net Weight (Product, kg)



2.03 kg


Product Depth



14 cm


Product Height



8.6 cm


Product Width



15 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Antec


Warranty



1 Year(s)
