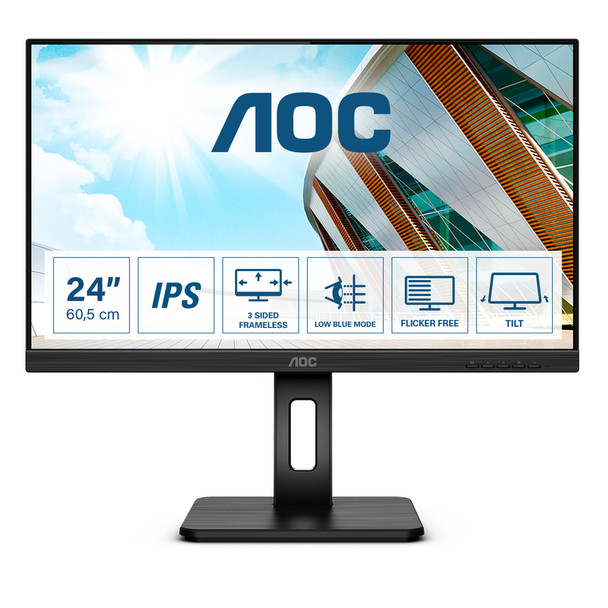

AOC 24P2Q LED display 60.5 cm 23.8" 1920 x 1080 pixels Full HD Black 24P2Q

Comfort, convenience, and performance in a 23.8" Full HD display with DisplayPort
The 24P2Q is equipped with a flat 23.8" IPS/3FL panel with Full HD resolution and 178�/178� wide viewing angles in a slim 3-sided frameless display. Designed to offer today's business the heightened productivity they seek, this model is compatible with VGA, DVI, HDMI, and DP and includes a USB 3.2 hub. Equipped with Low Blue Mode and Flicker-Free technology, it can be adjusted, tilted, pivoted, and swiveled to the ideal ergonomic position.

Multimedia


Built-in microphone

No


Built-in speaker(s)

Yes


Built-in camera

No


RMS rated power

2 W


Number of speakers

2



Other features


Exterior finish type

Textured


Recyclable packaging material

100


Light effects

No



Ports & interfaces


Audio input

Yes


DisplayPort version

1.2


Headphone out

Yes


DisplayPorts quantity

1


Built-in USB hub

Yes


USB Type-A downstream ports quantity

4


HDMI ports quantity

1


Microphone in

Yes


VGA (D-Sub) ports quantity

1


USB hub version

3.2 Gen 1 (3.1 Gen 1)


HDMI

Yes


DVI port

Yes


HDMI version

1.4


Headphone connectivity

3.5 mm



Design


Detachable stand

Yes


Frameless design

Yes


Heavy metals free

Hg (mercury)


Front bezel colour

Black


Product colour

Black


Market positioning

Business


Feet colour

Black


Certification

True



Recycling data


Post-consumer recycled plastic

85



Weight & dimensions


Height (without stand)

326.4 mm


Height (with stand)

513 mm


Depth (without stand)

50.7 mm


Weight (with stand)

4.75 kg


Width (with stand)

540.2 mm


Depth (with stand)

200.1 mm


Width (without stand)

540.2 mm



Ergonomics


Cable lock slot

Yes


Panel mounting interface

100 x 100 mm


On Screen Display (OSD)

Yes


Pivot angle

0 - 180�


On Screen Display (OSD) languages

Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian


Tilt angle range

-5 - 35�


Swivel angle range

-180 - 180�


Cable lock slot type

Kensington


VESA mounting

Yes


Height adjustment

15 cm


Pivot

Yes


Tilt adjustment

Yes


Number of OSD languages

16



Packaging content


DisplayPort cable length

1.8 m


Power cable length

1.8 m


Cables included

Audio (3.5mm), DVI, DisplayPort, HDMI, VGA


Audio cable length

1.8 m


HDMI cable length

1.8 m


Stand included

Yes



Logistics data


Harmonized System (HS) code

85285210



Sustainability


Doesn't contain

PVC/BFR


European Product Registry for Energy Labelling (EPREL) code

419849


Sustainability certificates

EPEAT Silver



Performance


AMD FreeSync refresh rate range

48 - 75 Hz


AMD FreeSync

Yes


NVIDIA G-SYNC

No


Low Blue Light technology

Yes


Fast charging

Yes


Flicker-free technology

Yes


Compatibility

VESA-P2



Power


AC input voltage

100 - 240 V


Power consumption (off)

0.3 W


AC input frequency

50 - 60 Hz


Power consumption (typical)

14.58 W


Power consumption (standby)

0.3 W


Energy efficiency class (SDR)

E


Energy efficiency scale

A to G


Energy consumption (SDR) per 1000 hours

17 kWh



Display


Viewable size, vertical

29.6 cm


Display surface

Matt


Colour depth

8 bit


Supported graphics resolutions

1920 x 1080 (HD 1080)


Anti-glare screen

Yes


Contrast ratio (dynamic)

50000000:1


Panel type

IPS


Display number of colours

16.7 million colours


Viewable size, horizontal

52.7 cm


Contrast ratio (typical)

1000:1


NTSC coverage (typical)

72


sRGB coverage (typical)

107


Display technology

LED


Viewing angle, horizontal

178�


HD type

Full HD


Pixel pitch

0.2745 x 0.2745 mm


Touchscreen

No


Viewing angle, vertical

178�


Pixel density

92 ppi


Display brightness (typical)

300 cd/m�


Maximum refresh rate

75 Hz


Horizontal scan range

30 - 85 kHz


Native aspect ratio

16:9


Display diagonal

60.5 cm (23.8")


Display scanning frequency

VGA/DVI/HDMI 1.4/DP 1.2: 30 - 85 KHz (H), VGA/DVI/HDMI 1.4/DP 1.2: 48 - 75 Hz (V)


Screen shape

Flat


Supported video modes

1080p


Surface hardness

3H


Adobe RGB coverage

79


Response time

4 ms


Display diagonal (metric)

60.452 cm


Digital horizontal frequency

30 - 85 kHz


Display resolution

1920 x 1080 pixels


Backlight type

W-LED


RGB colour space

sRGB



Packaging data


Package height

525 mm


Package depth

160 mm


DVI cable length

1.8 m


Package width

610 mm


VGA cable length

1.8 m


Package type

Box


Package weight

6.89 kg
