Apc

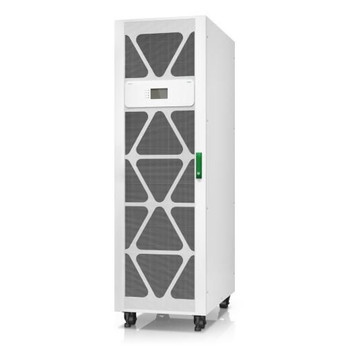

APC E3MUPS80KHS Uninterruptible Power Supply E3MUPS80KHS
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- E3MUPS80KHS
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 80 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management. It is supplied without batteries, so you can easily customize your battery solution. Includes 5x8 start-up service.
Includes: Dust filter, Installation guide, Start-Up Service.
Battery
Cold start
Yes
Design
Certification
EN/IEC 62040-1, IEC 62040-2, IEC 62040-3, IEC 62040-4
Display type
LCD
Form factor
Tower
International Protection (IP) code
IP20
LED indicators
Y, Yes
Product colour
White
Features
Audible alarm(s)
Yes
Crest factor
3:1
ECO mode
Yes
Efficiency
94.9 %
Input frequency
40/70 Hz
Input operation voltage (max)
477 V
Input operation voltage (min)
342 V
Input power factor
0.99
Maximum current
146 A
Noise level
65 dB
Number of input phases
3
Number of output phases
3
Output frequency
50/60 Hz
Output operation voltage (max)
415 V
Output operation voltage (min)
380 V
Output power
80000 Watt
Output power capacity
80 kVA
Output voltage Total Harmonic Distortion (THD)
3 %
UPS topology
Double-conversion (Online)
Waveform
Sine
Logistics data
Harmonized System (HS) code
85078000
Operational conditions
Non-operating altitude
0 - 15000 m
Operating altitude
0 - 1476.3 m
Operating relative humidity (H-H)
0 - 95 %
Operating temperature (T-T)
0 - 40 �C
Storage relative humidity (H-H)
0 - 95 %
Storage temperature (T-T)
-25 - 55 �C
Package dimensions
Gross Weight (Package, kg)
0.13 kg
Product dimensions
Net Weight (Product, kg)
0.1 kg
Product Depth
85 cm
Product Height
91.5 cm
Product Width
36 cm
Vendor information
Brand Name
APC
Warranty
1 Year(s)
Weight & dimensions
Battery depth
96.5 cm
Battery height
114 cm
Battery weight
164 kg
Battery width
47.5 cm
View AllClose
