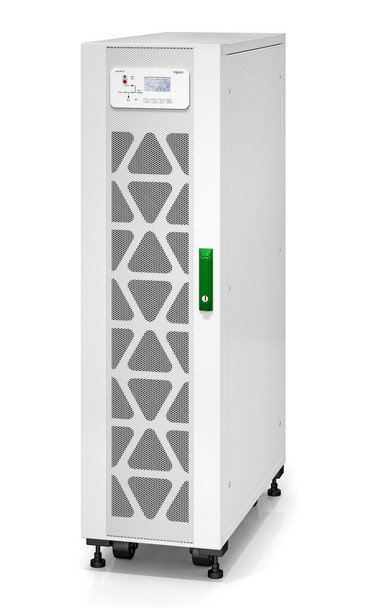

APC E3SUPS15KHB Easy 3S Double-Conversion E3SUPS15KHB

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 15 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab.

Includes: Dust filter, Installation guide.

Battery



Battery technology



Sealed Lead Acid (VRLA)


Battery voltage



240 V


Design



Certification



CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE REACH


Cooling type



Active


Form factor



Tower


International Protection (IP) code



IP20


LED indicators



Y, Yes


Product colour



White


Features



ECO mode



Yes


Efficiency



94.5 %


Emergency Power Off (EPO)



Yes


Input frequency



45/65 Hz


Input operation voltage (max)



477 V


Input operation voltage (min)



304 V


Input power factor



0.99


Maximum current



28 A


Noise level



60 dB


Number of input phases



3


Number of output phases



3


Output frequency



50/60 Hz


Output operation voltage (max)



415 V


Output operation voltage (min)



380 V


Output power



15000 Watt


Output power capacity



15 kVA


Output voltage Total Harmonic Distortion (THD)



3 %


UPS topology



Double-conversion (Online)


Waveform



Pure sine


Logistics data



Harmonized System (HS) code



85078000


Operational conditions



Non-operating altitude



0 - 15000 m


Operating altitude



0 - 999.9 m


Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



0 - 95 %


Storage temperature (T-T)



-15 - 40 �C


Other features



Nominal input voltage



400 V


Nominal output voltage



400 V


Package dimensions



Depth (package,cm)



101.4 cm


Gross Weight (Package, kg)



5.2 kg


Height (package,cm)



164 cm


Width (package,cm)



56.3 cm


Product dimensions



Net Weight (Product, kg)



4 kg


Product Depth



92.8 cm


Product Height



140 cm


Product Width



38 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


APC


Warranty



1 Year(s)
