Apc

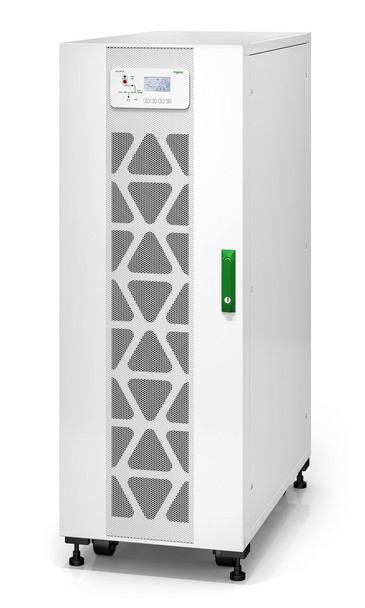

APC E3SUPS30K3IB Uninterruptible Power Supply E3SUPS30K3IB
(No reviews yet)
Write a Review
- UPC:
- 0731304340805
- MPN:
- E3SUPS30K3IB
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab.
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery voltage
240 V
Number of batteries supported
4
Design
Certification
REACH, CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE
Form factor
Tower
International Protection (IP) code
IP20
Product colour
White
Features
Crest factor
3:1
Input current Total Harmonic Distortion (THD)
5 %
Input frequency
45/65 Hz
Input operation voltage (max)
477 V
Input operation voltage (min)
304 V
Input power factor
0.99
Maximum current
55 A
Noise level
63 dB
Output frequency
50/60 Hz
Output operation voltage (max)
240 V
Output operation voltage (min)
220 V
Output power
30000 Watt
Output power capacity
30 kVA
Output voltage Total Harmonic Distortion (THD)
1.5 %
UPS topology
Double-conversion (Online)
Logistics data
Harmonized System (HS) code
85078000
Operational conditions
Non-operating altitude
0 - 15000 m
Operating altitude
0 - 984.3 m
Operating relative humidity (H-H)
0 - 95 %
Operating temperature (T-T)
0 - 40 �C
Storage relative humidity (H-H)
0 - 95 %
Storage temperature (T-T)
-15 - 40 �C
Package dimensions
Depth (package,cm)
111.4 cm
Gross Weight (Package, kg)
5.2 kg
Height (package,cm)
164 cm
Width (package,cm)
68.3 cm
Product dimensions
Net Weight (Product, kg)
4 kg
Product Depth
99.6 cm
Product Height
140 cm
Product Width
50 cm
Technical details
Sustainability certificates
RoHS
Vendor information
Brand Name
APC
Warranty
1 Year(s)
