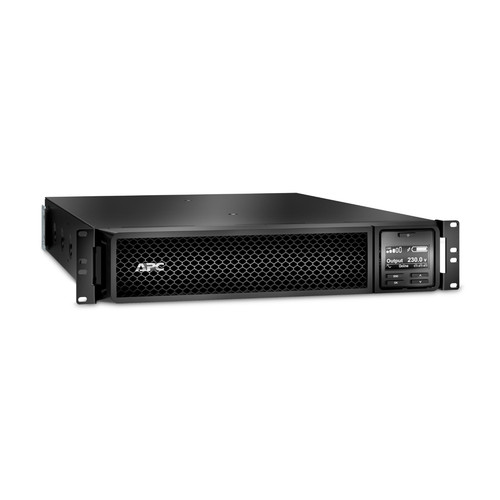

Apc Smart-Ups On-Line 1000Va/1000W Rackmount 2U 230V 6X C13 Iec Outlets Smartslo SRT1000RMXLI

APC Smart-UPS On-Line, 1000VA/1000W, Rackmount 2U, 230V, 6x C13 IEC outlets, SmartSlot, Extended runtime, W/ rail kit. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 1000 W. AC outlet types: IEC 60320, Serial interface type: RJ-45. Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 5 year(s), Battery recharge time: 3 h. Form factor: Rackmount/Tower, Product colour: Black, Cable length: 1.5 m. Compliance certificates: RoHS, Certification: CE, E This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with IEC 320 C14, BS1363A British and Schuko CEE 7/EU1-16P inputs, and 6x IEC 320 C13 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Controls/Indicators

Status Indicators
LCD Graphics Screen


Interfaces/Ports

Network (RJ-45)Yes
Serial PortYes
EPO PortYes
USB (HID Compliant) PortYes

Miscellaneous

Software IncludedAPC Powerchute Network Shutdown Software
Environmentally FriendlyYes
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)

Environmental Conditions

Thermal Dissipation317 BTU/h
Maximum Operating Temperature40??C
Maximum Operating Elevation3 km
Maximum Storage Elevation15 km
Sound Emission (A-Weighted)50 dB(A)

Battery Information

Battery ChemistryLead Acid
Number of Batteries1
Backup/Run Time (Half Load)21.10 Minute
Backup/Run Time (Full Load)8.40 Minute
Battery CharacteristicsMaintenance-free, Sealed
Replaceable BatteryYes
Typical Battery Recharge Time3 Hour

Power Description

Input Voltage230 V AC
Output Voltage230 V AC
240 V AC
Surge Energy Rating432 J
Waveform TypeSine Wave
Input Voltage Range50 V AC - 150 V AC
Output Frequency60 Hz
Input Frequency70 Hz
Load Capacity (VA)1 kVA
Load Capacity (Watt)1 kW


General Information

Product TypeDouble Conversion Online UPS
Manufacturer Part NumberSRT1000RMXLI
schneider-electric
ManufacturerSchneider Electric SA
Product NameSmart-UPS 1KVA Tower/Rack Convertible UPS
Product LineSmart-UPS
Product SeriesSRT
Brand NameAPC by Schneider Electric

Physical Characteristics

Weight (Approximate)21 kg
Form FactorRack-mountable
Rack Height2U
Height85 mm
Width432 mm
Depth505 mm
Product ColorBlack
Color FamilyBlack

Technical Information

Application/UsageIT Equipment
Industry
Computer
Voice/Data Network
Server
Medical
Plug/Connector TypeSCHUKO CEE 7 EU1-16P
IEC 60320 C14
British BS1363A
Receptacle TypeIEC 60320 C13
Number of Battery & Surge Outlets12
Transfer Time0 ns
Receptacle Detail6 x IEC 60320 C13
