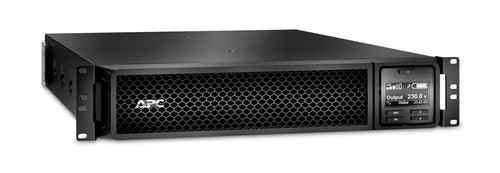

Apc Smart-Ups On-Line SRT3000RMXLI 3000Va 8X C13 & 2X C19 Rackmount. Ups Topolog SRT3000RMXLI

APC Smart-UPS On-Line SRT3000RMXLI - 3000VA, 8x C13 & 2x C19, rackmount. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, Serial interface type: RJ-45. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 505 VAh, Typical backup time at full load: 4 min. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Compliance certificates: RoHS, Certification: CE, VDE, R Stay always online and prevent data loss An APC Smart-UPS On-Line always supplies perfectly clean power to all connected equipment thanks to its double conversion technology. Even power outages have no influence on this. The APC Smart-UPS On-Line then automatically supplies emergency power without having to switch. This way you prevent unwanted failure of, for example, a PC, server, storage or switch. With the free APC PowerChute software you can even have critical IT hardware shut down automatically and in a controlled manner when the battery of the UPS is almost empty. This way you prevent data loss, downtime and physical damage to hardware. Extend the runtime You can easily increase the number of minutes that the APC SRT3000RMXLI can independently supply emergency power by connecting external battery packs (SRT96RMBP). A runtime of several hours is even possible. Availability The Smart-UPS On-Line has an internal bypass and uses double conversion, maximizing the availability and lifespan of connected hardware. It also makes the UPS compatible with an emergency power generator. The Un- Line double conversion technology ensures clean, uninterrupted power to protected equipment even when generator power is used. Safety In addition, a Smart-UPS On-Line protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for business use. Ease of use The APC Smart-UPS SRT is easy to operate thanks to a tilting graphic LCD screen and physical buttons. This makes it possible to set and read the basic functionalities. Because the background color of the screen changes depending on the type of warning, the severity of the situation can be quickly visually assessed. Thanks to the included 4-post rail kit, you can easily mount the UPS in a rack. Network Management Card If you connect the UPS directly to your network via the optional APC Network Management Card (AP9640/AP9641), it can easily be managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SFTWES1-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of the APC PowerChute Network Shutdown Software associated with the network card can even be differentiated in the shutdown moment and the order in which this happens. Extend the lifespan The internal battery cartridge (APCRBC152) can be replaced easily, safely and independently by the user. This without having to switch off the APC SRT3000RMXLI or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online. Warranty extension The manufacturer's warranty of the SRT3000RMXLI is 3 years, with the exception of the battery cartridge, which has a 2-year manufacturer's warranty. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-04). Switched Outlet Groups: Remote reboot and phased start-up Thanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which limits oversizing of the UPS. It is also possible to reset a group of multiple UPS outputs and the equipment connected to them. If a network card (ap9640) is used in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this can even be done remotely. You also cannot eliminate critical loads; This way you extend the runtime for critical equipment. Green Premium This label represents Schneider Electric's commitment to delivering products with best-in-class environmental performance. Green Premium promises to comply with the latest regulations, transparency on environmental effects
Battery Information

Battery ChemistryLead Acid
Backup/Run Time (Full Load)4 Minute
Typical Battery Recharge Time3 Hour

Miscellaneous

Environmentally FriendlyYes
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)

Power Description

Input Voltage230 V AC
Output Voltage230 V AC
Waveform TypeSine Wave
Load Capacity (VA)3 kVA
Load Capacity (Watt)2.70 kW

Physical Characteristics

Weight (Approximate)31.30 kg
Form FactorRack-mountable
Rack Height2U
Height85 mm
Width432 mm
Depth635 mm
Product ColorBlack
Color FamilyBlack


Technical Information

Receptacle TypeIEC 60320 C13
IEC 60320 C19
Number of Battery & Surge Outlets22
Receptacle Detail2 x IEC 60320 C19
8 x IEC 60320 C13

General Information

Product TypeDouble Conversion Online UPS
Manufacturer Part NumberSRT3000RMXLI
schneider-electric
Packaged Quantity1 Each
ManufacturerSchneider Electric SA
Product NameSmart-UPS SRT 3000VA RM 230V
Product LineSmart-UPS
Product SeriesSRT
Brand NameAPC by Schneider Electric
