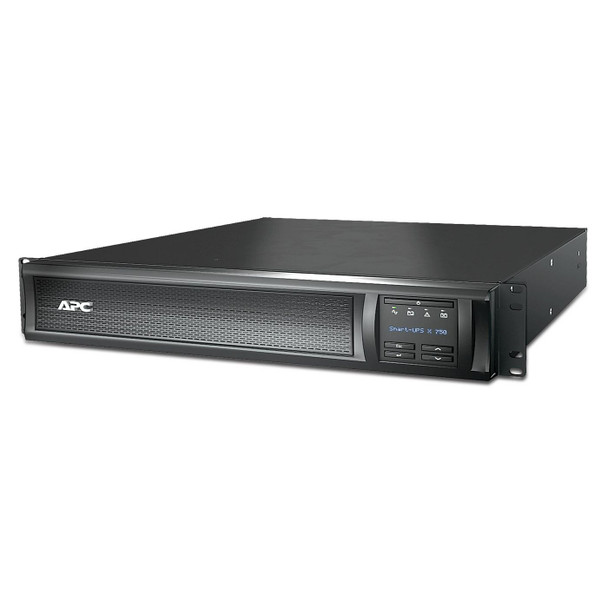

APC SMX750INC Uninterruptible Power Supply SMX750INC

Cold-start capable

Provides temporary battery power when the utility power is out.

Energy meter

Provides actual kilowatt hours of usage for energy conscious users.

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

High online efficiency

Reduces utlility costs, generates less heat.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Predictive replace battery date

Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Preinstalled network management card

Provides for remote management and control of the UPS over a network out of the box.

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Single switched outlet group

Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

SmartSlot

Customize UPS capabilities with management cards.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Battery



Automatic battery test



Yes


Battery life (max)



5 year(s)


Battery recharge time



3 Hour


Battery technology



Sealed Lead Acid (VRLA)


Cold start



Yes


Hot-swap battery



Yes


Design



Certification



CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH


Display type



LED


Form factor



Rackmount/Tower


LED indicators



Y, Yes


Product colour



Black


Rack capacity



2U


Features



Audible alarm modes



Alarm when on battery, Low battery alarm, Overload alarm


Audible alarm(s)



Yes


Auto-restart



Yes


Emergency Power Off (EPO)



Yes


Input frequency



50/60 Hz


Input operation voltage (max)



302 V


Input operation voltage (min)



151 V


Noise level



40 dB


Output frequency



50/60 Hz


Output operation voltage (max)



240 V


Output operation voltage (min)



220 V


Output power



600 Watt


Output power capacity



0.75 kVA


Surge energy rating



645 J


Surge protection



Yes


Temperature voltage compensation



Yes


UPS topology



Line-Interactive


Waveform



Pure sine


Web-based management



Yes


Logistics data



Harmonized System (HS) code



85078000


Products per pallet



8 pc(s)


Operational conditions



Non-operating altitude



0 - 15000 m


Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



0 - 95 %


Storage temperature (T-T)



-15 - 45 �C


Package dimensions



Depth (package,cm)



62 cm


Gross Weight (Package, kg)



29.9 kg


Height (package,cm)



24.6 cm


Width (package,cm)



58.9 cm


Packaging data



Cables included



RS-232, USB cable


Quick installation guide



Yes


Rack mount kit



Yes


Resource CD



Yes


Software CD



Yes


Ports & interfaces



AC outlet types



C13 coupler, IEC Jumpers


AC outlets quantity



10 AC outlet(s)


Cabling technology



10/100Base-T


Ethernet LAN (RJ-45) ports



1


Power plug



C14 coupler


Serial interface



Yes


Serial interface type



RJ-45


Serial ports quantity



1


SmartSlot



Yes


USB 2.0 ports quantity



1


USB port



Yes


Product dimensions



Net Weight (Product, kg)



23 kg


Product Depth



49 cm


Product Height



8.9 cm


Product Width



43.2 cm


Vendor information



Brand Name


APC


Warranty



1 Year(s)
