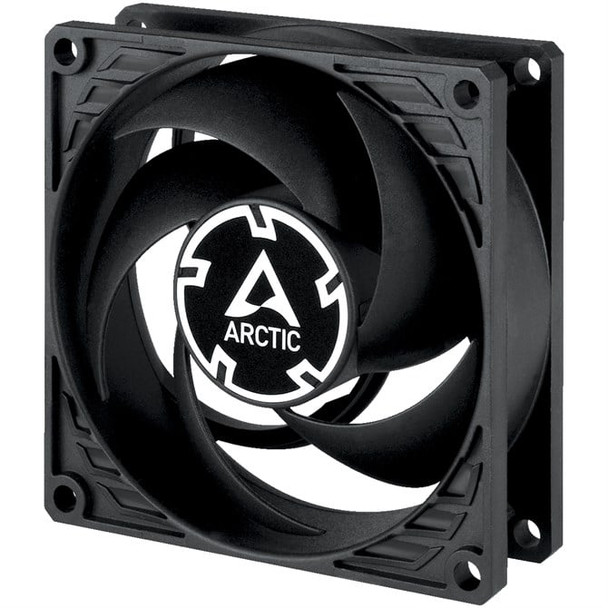

ARCTIC P8 Max - High-Performance 80 Mm PWM Fan ACFAN00286A

Specs




Performance


Suitable location

Locations in which the product can be used.

Computer case


Type

Characteristics of the device.

Fan


Fan diameter

The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.

8 cm


Noise level

0.6 sone


Maximum airflow

40 cfm


Airflow

67.96 m³/h


Pulse-width modulation (PWM) support




Fan bearing technology

Double ball bearing


Quantity per pack

1 pc(s)


Fan speed (min)

500 RPM


Fan speed (max)

5000 RPM


Fan static pressure

5.3 mmH2O


Fan's mean time to failure (MTTF)

500000 h


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 °C


Design


Product colour

The colour e.g. red, blue, green, black, white.

Black


Number of fans

The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).

1 fan(s)


Number of fan blades

5



Design


Fan connector

4-pin


Rack capacity

The spase that device fill in rack.

2U


Power


Starting voltage

3.2 V


Fan voltage
V


Fan current

0.19 A


Weight & dimensions


Fan dimensions (W x D x H)

80 x 80 x 25 mm


Fan weight

84 g


Cable length

How long the cable is.

0.4 m


Package width

The distance from one side of the packaging to the other.

82.5 mm


Package depth

The distance from the front to the back of the packaging.

82.5 mm


Package height

The distance from the top to the bottom of the packaging.

26 mm


Package weight

Weight of the packaged product.

89 g


Packaging content


Mounting kit




Screws included




Other features


Country of origin

Country where the device is made. Aka Country of manufacture (COM).

Hong Kong
