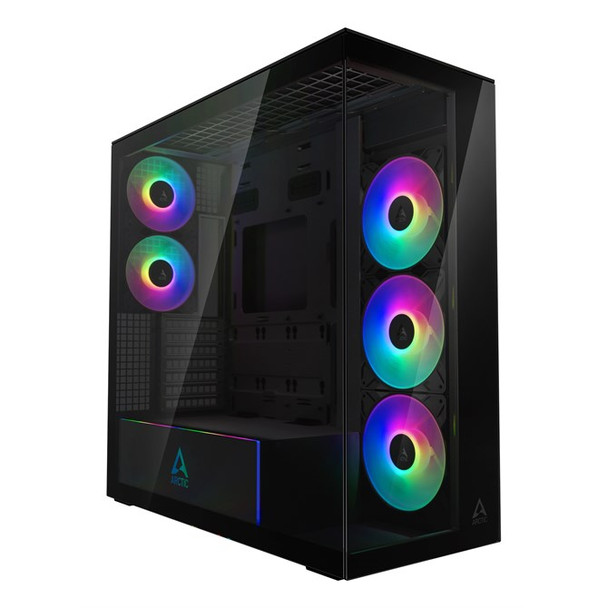

ARCTIC Xtender Mirror Black Premium E-ATX PC Case ACPCC00018A

Xtend your Cooling
The Xtender is a high-airflow panorama case for maximum air circulation. Five pre-installed fans ensure efficient cooling of high-performance components. The power supply unit (PSU) will be mounted approximately 20 mm above the bottom to ensure an optimal supply of fresh air.

Compatibility for 120 or 140 mm Fans
Modular, removable fan brackets for installing 140 mm fans at the top or on the side.

Supports Two 420 mm Radiators
Supports two 420, 360, 280 or 240 mm radiators for high-performance AIOs and custom loops.

Magnetic Mesh Filters
Easily removable, reinforced filters protect against dust and allow quick cleaning.

Five preinstalled Fans

Xtend your Vision

Functional I/O Panel
No frills. Only the most important and frequently used ports are included.

Tempered Glass Side Panels
Large tempered glass windows provide a clear view of the hardware.

A-RGB PSU Cover
Integrated glass panel with 24 A-RGB LEDs illuminates the lower section of the case.

Xtend your Storage

Flexible Mounting for Up to Six Drives
Supports three 2.5" drives behind the motherboard tray. Removable drive cage holds two 3.5"/2.5" and one additional 2.5" drive.

Xtend your Experience

Includes Accessory Box
Includes extra screws, cable ties and space for additional small parts.

3D Cable Pass-Throughs for Improved Aesthetics
For clean cable routing behind the motherboard and a tidy interior.

Clean Cable Management
Smart cutouts and optimally placed cable straps for easy cable management.

Specs




Design


Material

The material from which a thing is or can be made e.g. wood, plastic.

Metal, Tempered glass


Form factor

The shape or design of the product.

Midi Tower


Type

Characteristics of the device.

PC


Product colour

The colour e.g. red, blue, green, black, white.

Black


Supported motherboard form factors

Design of the supported motherboards.

EATX


Number of 3.5" bays

A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks.

2


Number of 2.5" bays

4


Number of internal 3.5" bays

2


Number of storage drives supported

How many storage drives can be fit into the product at once.

6


Number of expansion slots

7


Suitable for

Who can use the product, or what the product can be used for.

Gaming


Illumination

The device has illumination.




Illumination colour

The colour of the illumination, which is the light which allows you to see the display etc. clearly.

Blue, Green


Illumination location

Case fans, Side


Tempered glass panel(s)




Anti-dust filter




Cable management

Description of improved cable management




On/off button




Maximum CPU cooler height
.1 cm


Maximum graphics card length

48.2 cm


Maximum PSU length

31.8 cm


Power supply


Power supply included

There is a power supply with this product.




Power supply location

Where the power supply is positioned.

Bottom


Supported power supply form factors

ATX


Ports & interfaces


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

1


Combo headphone/mic port




Cooling


Side fans installed

3x 140 mm


Number of side fans supported (max)

3


Side fans diameters supported
0, 140 mm



Cooling


Rear fans installed

2x 120 mm


Number of rear fans supported (max)

2


Rear fans diameters supported
0 mm


Number of top fans supported (max)

3


Top fans diameters supported
0, 140 mm


Fan speed

600 - 3000 RPM


Maximum airflow

77 cfm


Fan rated voltage

5 - 12 V


Fan 2 maximum airflow

98 cfm


Maximum air pressure

6.9 mmH2O


Fan 2 maximum air pressure

5.1 mmH2O


Side radiator sizes supported

240, 280, 360, 420 mm


Top radiator sizes supported

240, 280, 360, 420 mm


Storage


Supported HDD sizes

The size of the hard disk drives which can be used by the device.

2.5, 3.5"


HDD/SSD combo cage




Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 °C


Weight & dimensions


Width

The measurement or extent of something from side to side.

231 mm


Depth

The distance from the front to the back of something.

529 mm


Height

The measurement of the product from head to foot or from base to top.

529 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
.4 kg


Packaging data


Package width

The distance from one side of the packaging to the other.

327 mm


Package depth

The distance from the front to the back of the packaging.

624 mm


Package height

The distance from the top to the bottom of the packaging.

637 mm


Package weight

Weight of the packaged product.
.8 kg


Other features


Bearing type

Fluid bearing


Volume

The amount of a substance contained.

64 L


Fan connector

4-pin
