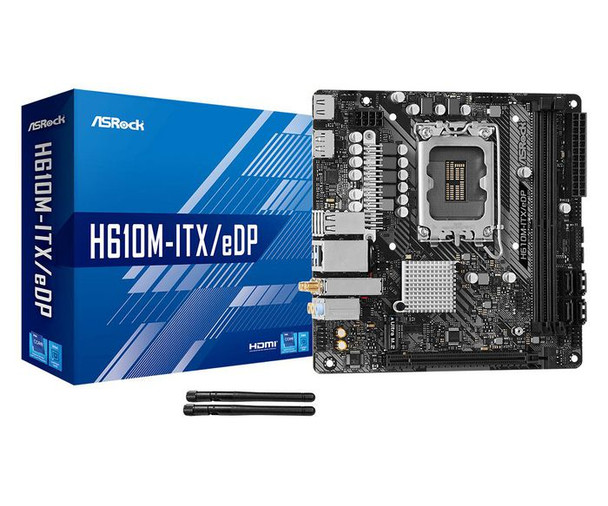

Asrock H610M-ITX/EDP Motherboard Intel H610 Lga H610M-ITX/EDP
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- H610M-ITX/EDP
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Built in eDP Signal Connector
Supports ASRock 13.3� Side Panel kit
An eDP signal connector is built with ASRock selected motherboards and supports two functions simultaneously - power and transmission of digital display signal. The connector reserves the room for upgrading with ASRock�s exclusive 13.3� Side Panel Kit.. The ideal 13.3" Side Panel size will be perfectly matched standard form factor chassis and users can easily build a LCD display inside the PC, adding a sub-screen for monitoring PC status, or watching videos, doing streaming or working personalized tasks. This whole new concept of customization enables new possibilities for personalizing designs - doubles productivity or entertainment.
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
Intel� Gigabit LAN
Intel� LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard�s components from being damaged by these unexpected voltage spikes.
BIOS
ACPI version
6.0
BIOS memory size
128 Mbit
BIOS type
UEFI AMI
System Management BIOS (SMBIOS) version
2.7
Expansion slots
Number of M.2 (M) slots
1
PCI Express x16 (Gen 4.x) slots
1
Features
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
Component for
PC
Motherboard chipset
Intel H610
Motherboard chipset family
Intel
Motherboard form factor
mini ITX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Internal I/O
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Front panel audio connector
Yes
Number of chassis fan connectors
1
Number of SATA III connectors
4
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Memory
ECC
Yes
Maximum internal memory
64 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Non-ECC
Yes
Number of memory slots
2
Supported memory types
DDR4-SDRAM
Unbuffered memory
Yes
Network
Bluetooth
Yes
Bluetooth version
5.1
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
LAN controller
Intel� I219-V
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Wake-on-LAN ready
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Package dimensions
Gross Weight (Package, kg)
1.3 kg
Packaging content
Cables included
SATA
Processor
Compatible processor series
Intel� Core� i5, Intel� Core� i7, Intel� Core� i9
Maximum number of SMP processors
1
Processor manufacturer
Intel
Processor socket
LGA 1700
Product dimensions
Net Weight (Product, kg)
1 kg
Product Depth
17 cm
Product Width
17 cm
Rear panel I/O ports
DisplayPort version
1.4
DisplayPorts quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
Line-in
Yes
Microphone in
Yes
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Storage controllers
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Vendor information
Brand Name
Asrock
Warranty
1 Year(s)
