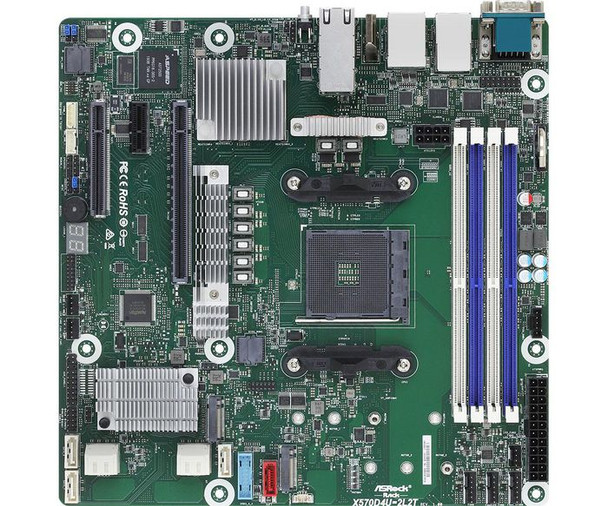

Asrock X570D4U-2L2T Motherboard Amd X570 Pga 1331 X570D4U-2L2T

BIOS



ACPI version



2.0


BIOS type



UEFI AMI


Expansion slots



PCI Express x1 slots



1


PCI Express x16 (Gen 4.x) slots



1


PCI Express x8 slots



1


Features



Motherboard chipset



AMD X570


Motherboard chipset family



AMD


Motherboard form factor



micro ATX


Graphics



Graphics card



AST2500


Graphics card family



ASPEED


Internal I/O



ATX Power connector (24-pin)



Yes


Chassis intrusion connector



Yes


Number of SATA III connectors



12


TPM connector



Yes


Logistics data



Harmonized System (HS) code



84733020


Memory



Maximum internal memory



32 GB


Memory slots type



DIMM


Memory voltage



1.2


Non-ECC



Yes


Number of memory slots



4


Supported memory clock speeds



2666, 3200


Supported memory types



DDR4-SDRAM


Unbuffered memory



Yes


Network



Ethernet interface type



10 Gigabit Ethernet


Ethernet LAN



Yes


LAN controller



Intel I210, Intel� X550-AT2


Operational conditions



Operating temperature (T-T)



10 - 35 �C


Storage temperature (T-T)



-40 - 70 �C


Other features



Weight



1 kg


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Processor



Processor socket



Socket AM4


Supported processor sockets



Socket AM4


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



24.4 cm


Product Height



32 cm


Product Width



24.4 cm


Rear panel I/O ports



Ethernet LAN (RJ-45) ports



5


HDMI ports quantity



1


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


VGA (D-Sub) ports quantity



1


Storage controllers



RAID levels



0, 1, 10


RAID support



Yes


Supported storage drive interfaces



M.2, SATA III


Vendor information



Brand Name


Asrock


Warranty



1 Year(s)
