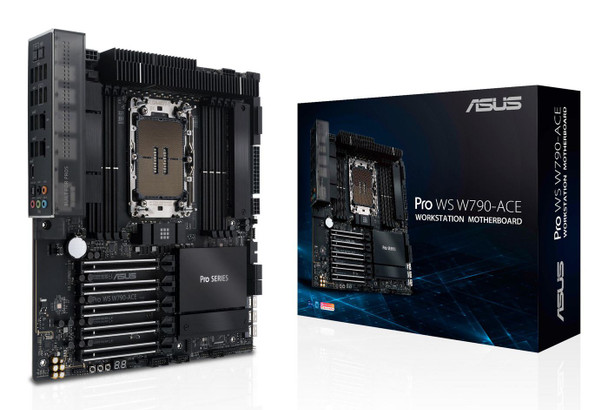

Asus 90MB1C70-M0EAY0 Pro Ws W790-Ace Intel W790 90MB1C70-M0EAY0

BIOS



BIOS memory size



512 Mbit


BIOS type



UEFI AMI


Clear CMOS button



Yes


Expansion slots



PCI Express x16 (Gen 5.x) slots



5


Features



Audio chip



Realtek S1220A


Audio output channels



7.1 channels


Component for



Workstation


Motherboard chipset



Intel W790


Motherboard chipset family



Intel


Windows operating systems supported



Windows 10 x64, Windows 11


Internal I/O



12V power connector



Yes


ATX Power connector (24-pin)



Yes


CPU fan connector



Yes


EPS power connector (8-pin)



Yes


Front panel audio connector



Yes


Number of chassis fan connectors



5


Number of COM connectors



1


Number of SATA III connectors



4


TPM connector



Yes


USB 2.0 connectors



2


USB 3.2 Gen 1 (3.1 Gen 1) connectors



1


USB 3.2 Gen 2 (3.1 Gen 2) connectors



1


Memory



ECC



Yes


Maximum internal memory



2 TB


Memory channels



Quad-channel


Memory slots type



DIMM


Number of memory slots



8


Supported memory clock speeds



4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800


Supported memory types



DDR5-SDRAM


Network



Ethernet interface type



2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet


Ethernet LAN



Yes


Wi-Fi



No


Other features



Weight



1.814 kg


Package dimensions



Depth (package,cm)



31.2 cm


Gross Weight (Package, kg)



1.3 kg


Height (package,cm)



10.8 cm


Width (package,cm)



37 cm


Processor



Compatible processor series



Intel Xeon W


Intel Xeon series



W-3400, W-2400


Processor manufacturer



Intel


Processor socket



LGA 4677 (Socket E)


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



27.7 cm


Product Height



5 cm


Product Width



30.5 cm


Rear panel I/O ports



Ethernet LAN (RJ-45) ports



2


Headphone outputs



1


Microphone in



Yes


S/PDIF out port



Yes


USB 2.0 ports quantity



8


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



4


USB 3.2 Gen 2x2 Type-C ports quantity



1


Storage controllers



Number of HDDs supported



4


Number of storage drives supported



6


RAID levels



0, 1, 5, 10


RAID support



Yes


Supported storage drive interfaces



M.2, SATA III


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


Asus


Warranty



1 Year(s)
