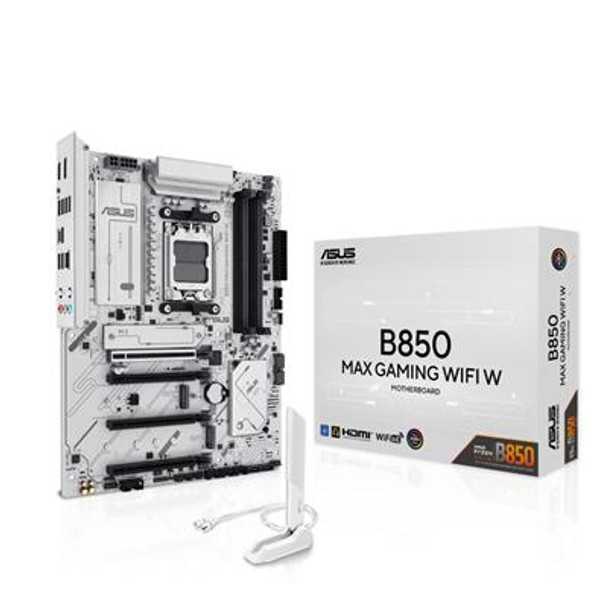

Asus B850 MAX GAMING WIFI W White Socket Am5/B850/Ddr5/S-Ata 6Gb/S/Atx B850 MAX GAMING WIFI W

Product Group:

Motherboards



Manufacturer:

ASUS



SKU:
6852


Product Specifications



Product Name:

ASUS B850 MAX GAMING WIFI W White (Socket AM5/B850/DDR5/S-ATA 6Gb/s/ATX)



Web Address:

www.asus.com



Model Number:

B850 MAX GAMING WIFI W



EAN:

4711387981016



Package Type:

Retail



Warranty:

3 Years



BIOS:

256 Mb Flash ROM, UEFI AMI BIOS



Chipset:

AMD B850



CPU Interface:

Socket AM5



CPU Support:

https://www.asus.com/motherboards-components/motherboards/others/b850-max-gaming-wifi-w/helpdesk_knowledge?model2Name=B850-MAX-GAMING-WIFI-W



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 8000+MT/s (O.C.)



Max. Memory Support:

256GB



PCI Express 3.0 x16:

2



PCI Express 4.0 x16:

1



PCI Express 5.0 x16:

1



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/5/10



M.2 Socket(s):

1 x PCIe Gen 5.0 x4
3 x PCIe Gen 4.0 x4



LAN Speed:

1 x Realtek 2.5Gb Ethernet
ASUS LANGuard



Wireless NIC:

Wi-Fi 6E



Wireless Technology:

2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band



Bluetooth:

v5.3



On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC



On-Board Video:

Processor with integrated graphics is required



Back USB 2.0 Port(s):

2



Back USB 5Gbps Port(s) Type-A:

2



Back USB 10Gbps Port(s) Type-A:

3



Back USB 10Gbps Port(s) Type-C:

1



Back HDMI Port(s):

1



Back DisplayPort(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

3



Back Other Port(s):

1 x Wi-Fi module



Back Button(s):

1 x BIOS FlashBack



24-pin ATX Power:

1



8-pin ATX Power:

1



4-pin ATX Power:

1



USB 2.0 Header(s):

3



USB 5Gbps Header(s):

2



Thunderbolt Header(s):

1



COM Port Header(s):

1



Front Panel Audio Connector:

1



TPM Header(s):

1



S/PDIF Out Header(s):

1



Internal Other Port(s):

3 x Addressable RGB Gen 2 headers



Form Factor:

Standard ATX



Product Width:

244mm



Product Length:

305mm



Special Features:

B850 MAX GAMING WIFI W motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 series processors. The B850 MAX GAMING WIFI W motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It-s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.



Package Contents:

Motherboard
2 x SATA 6Gb/s cables
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber packages
3 x Screw packages for M.2 SSD
1 x Quick start guide
