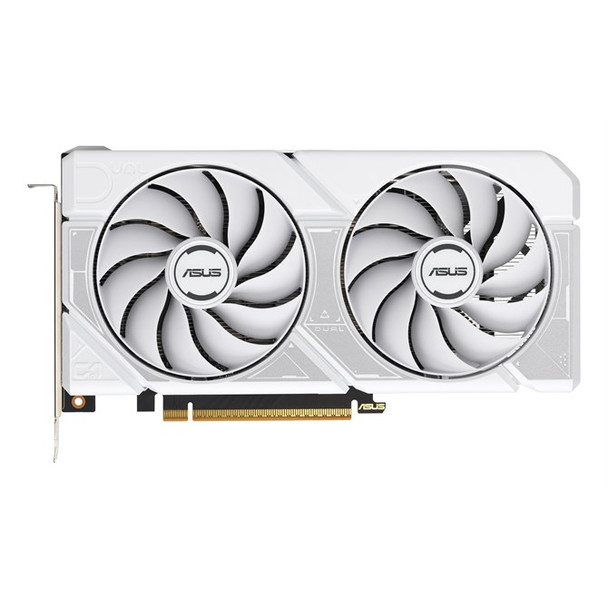

ASUS Dual -RTX5060-O8G-WHITE NVIDIA Geforce RTX 5060 8 GB GDDR7 90YV0N15-M0NA00

DUAL GEFORCE RTX- 5060 White Edition
Dual Fans, Perfect Fit
ASUS Dual GeForce RTX- 5060 White Edition combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards - including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

Cooling
2.5-slot Design
A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.

Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.

0dB Technology
To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 50 degrees and power consumption is low.

Dual Ball Fan Bearings
Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.

Vented Backplate
A vented backplate significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.

Unmatched Reliability
ASUS GPU Guard
ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks.

Protective Backplate
The PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage.

Stainless Steel Bracket
The mounting bracket of the Dual has been beefed up with 304 Stainless Steel that-s harder and more resistant to corrosion.

Engineering
Dual BIOS
Do you prioritize lower core temperatures or quieter operation? Performance mode increases fan speed to keep the card running cool all the time. Quiet mode maintains the same power target and performance settings, but applies a less aggressive fan curve for quieter operation at medium temperatures. Want more control? Customize your experience with GPU Tweak III software for fine-tuned fan profiles and performance adjustments.

Auto?Extreme Technology
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing completing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting and minimizes in less environmental impact. The result is lower power consumption during manufacturing and a more reliable, high-quality product.lower manufacturing power consumption, and a more reliable product overall.

RTX. It-s On.
The Ultimate in Ray Tracing and AI
RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.

Creators
Your Creative AI-dvantage
NVIDIA Studio is your creative advantage. GeForce RTX 50 Series GPUs unlock transformative performance in video editing, 3D rendering, and graphic design. Experience RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered and continually updated to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.

Specs




Processor


CUDA

CUDA (aka Compute Unified Device Architecture) is a parallel computing platform and programming model created by NVIDIA and implemented by the graphics processing units (GPUs) that they produce. CUDA gives program developers direct access to the virtual instruction set and memory of the parallel computational elements in CUDA GPUs.




CUDA cores

3840


Graphics processor family

The category to which the graphics processor (GPU) belongs e.g. Southern Islands family of Radeon processors (made by AMD), GeForce 600 (made by NVIDIA).

NVIDIA


Graphics processor

Also known as a graphics processing unit (GPU), this is a specialized electronic circuit designed to rapidly manipulate and alter memory to accelerate the creation of images in a frame buffer intended for output to a display. GPUs are used in embedded systems, mobile phones, personal computers, workstations, and game consoles. Modern GPUs are very efficient at manipulating computer graphics.

GeForce RTX 5060


Processor boost clock speed

2535 MHz


Processor frequency (OC mode)

2565 MHz


Maximum resolution

The maximum number of pixels that can be displayed in the image. It is usually quoted as width - height,: for example, "1024 - 768" means the width is 1024 pixels and the height is 768 pixels.

7680 x 4320 pixels


Parallel processing technology support

Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally, parallel processing makes programs run faster because there are more engines (CPUs or Cores) running it. In practice, it is often difficult to divide a program in such a way that separate CPUs or cores can execute different portions without interfering with each other. Most computers have just one CPU, but some models have several, and multi-core processor chips are becoming the norm. There are even computers with thousands of CPUs.

Not supported


Maximum displays per videocard

4


Memory


Discrete graphics card memory

8 GB


Graphics card memory type

The type of memory used by the video card. Often a combination of dedicated memory (Video RAM or VRAM) and dynamic system memory is used. UMA stands for Unified Memory Architecture, and is a computer memory architecture that allows the graphics processing unit to share system memory. Other abreviations: RAM = Random Access Memory, SDRAM = synchronous dynamic RAM, DDR = double-data-rate.

GDDR7


Memory bus

Hardware and software that connects the main memory to the memory controller in computer systems. Originally, general-purpose buses like VMEbus and the S-100 bus were used, but to reduce latency, modern memory buses are designed to connect directly to DRAM chips, and thus are designed by chip standards bodies such as JEDEC.
8 bit


Data transfer rate

Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.

28 Gbit/s


Ports & interfaces


Interface type

PCI Express 5.0


HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

1


HDMI version

2.1b


DisplayPorts quantity

Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

3


DisplayPort version

2.1b


Performance


TV tuner integrated

Device has an in-built TV tuner.




DirectX version

DirectX is a collection of APIs (application programming interfaces) for easily handling tasks related to game programming on the Microsoft Windows operating system.
Ultimate


OpenGL version

OpenGL (Open Graphics Library) is a specification defining a cross-language cross-platform API for writing applications that produce 3D computer graphics (and 2D computer graphics as well). The interface consists of over 250 different function calls which can be used to draw complex three-dimensional scenes from simple primitives.

4.6


Virtual Reality (VR) ready




HDCP

High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.




HDCP version

2.3


Dual Link DVI

A dual-link DVI interface sends data over both of the DVI links to the monitor, and this is how higher resolutions are achieved. With dual-link DVI, a resolution of 2048 x 1536 is possible.





Performance


NVIDIA G-SYNC




NPU performance up to

614 TOPs


Overclocked (OC) edition




Design


Cooling type

The method used to cool the device or to cool the air around the device.

Active


Cooling technology

ASUS Axial-tech


Number of fans

The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).

2 fan(s)


Number of slots

2.5


SFF ready




Product colour

The colour e.g. red, blue, green, black, white.

White


Power


Minimum system power supply

The lowest power that is needed.

550 W


Supplementary power connectors

1x 8-pin


System requirements


Windows operating systems supported

Windows vesions wich can be used with the device.

Windows 10 x64, Windows 11 x64


Weight & dimensions


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

647 g


Length

The measurement or extent of something from end to end.

228 mm


Depth

The distance from the front to the back of something.

50 mm


Height

The measurement of the product from head to foot or from base to top.
3 mm


Packaging data


Package width

The distance from one side of the packaging to the other.

368 mm


Package depth

The distance from the front to the back of the packaging.

220 mm


Package height

The distance from the top to the bottom of the packaging.

68 mm


Package weight

Weight of the packaged product.

1.11 kg


Package type

The type of product package e.g. box.

Box


Packaging content


Manual
