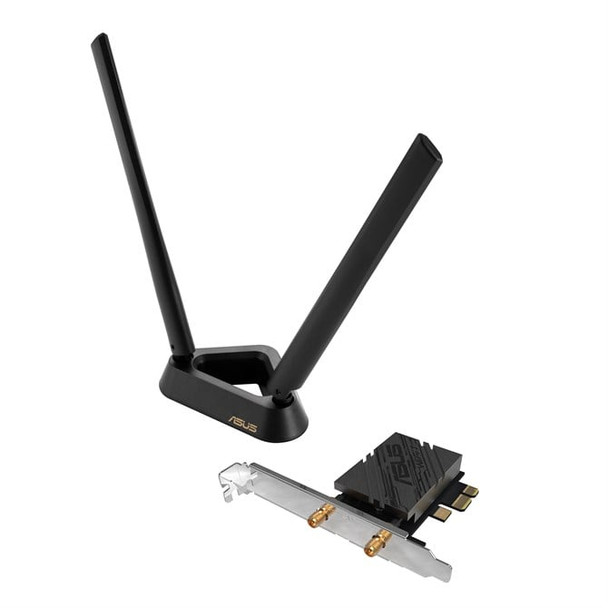

ASUS PCE-BE92BT WLAN / Bluetooth 5764 Mbit/s 90IG08U0-MO0B00

WiFi 7 PCI-E Adapter with 2 external antennas and magnetized base, supporting 6GHz band, 320MHz, Bluetooth 5.4, WPA3 network security, only compatible with lntel motherboards

Specs




Ports & interfaces


Connectivity technology

The technology that enables connectivity of the device, e.g. wired or wireless.

Wired & Wireless


Host interface

Interface that enables a host controller to communicate with a driver.

PCI Express


Interface

Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

WLAN / Bluetooth


Network


Maximum data transfer rate

The maximum speed with which data can be transmitted from one device to another.

5764 Mbit/s


Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.11be


Wi-Fi

Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.




Wi-Fi band

The frequency bands the product features.

Tri-band (2.4 GHz / 5 GHz / 6 GHz)


Frequency range

2.4 - 6 GHz


Top Wi-Fi standard

Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 7 (802.11be)


Wi-Fi standards

The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

Wi-Fi 7 (802.11be)


Security algorithms

Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

WPA3


Bluetooth

Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.




Bluetooth version

The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).

5.4


Design


Component for

What this product is used as a part of (component for).

PC



Design


Product colour

The colour e.g. red, blue, green, black, white.

Black


Internal

The product is built in.




Antenna




Antenna design

External


System requirements


Windows operating systems supported

Windows vesions wich can be used with the device.

Windows 11


Weight & dimensions


Width

The measurement or extent of something from side to side.
0 mm


Depth

The distance from the front to the back of something.

88 mm


Height

The measurement of the product from head to foot or from base to top.

21 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

84.8 g


Packaging data


Package width

The distance from one side of the packaging to the other.

335 mm


Package depth

The distance from the front to the back of the packaging.

257 mm


Package height

The distance from the top to the bottom of the packaging.

81 mm
