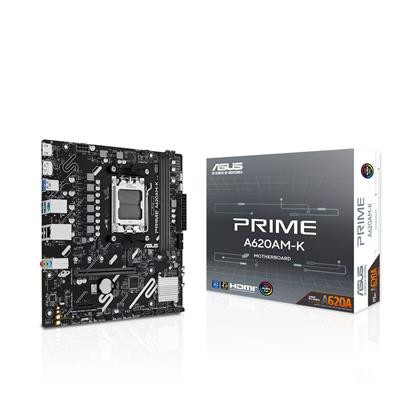

Asus PRIME A620AM-K Socket Am5/A620a/Ddr5/S-Ata 6Gb/S/Micro Atx PRIME A620AM-K

Product Group:

Motherboards



Manufacturer:

ASUS



SKU:
7731


Product Specifications



Product Name:

ASUS PRIME A620AM-K (Socket AM5/A620A/DDR5/S-ATA 6Gb/s/Micro ATX)



Web Address:

www.asus.com



Model Number:

PRIME A620AM-K



EAN:

4711636227971



Package Type:

Retail



Warranty:

3 Years



BIOS:


256 Mb Flash ROM
UEFI AMI BIOS




Chipset:

AMD A620A



CPU Interface:

Socket AM5



CPU Support:

https://www.asus.com/motherboards-components/motherboards/prime/prime-a620am-k/helpdesk_knowledge?model2Name=PRIME-A620AM-K



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

2 x 288-pin



RAM Speeds:

Up to DDR5 7200+ (O.C.)



Max. Memory Support:
8GB



PCI Express 4.0 x16:

1



PCI Express 3.0 x1:

1



S-ATA 6Gb/s Port(s):

4



M.2 Socket(s):

1 x PCIe Gen 4.0 x4



On-Board LAN:


1 x Realtek 1Gb Ethernet
ASUS LANGuard




On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC



On-Board Video:

Processor with integrated graphics is required



Back PS/2 Keyboard/Mouse Port:

1



Back USB 2.0 Port(s):

2



Back USB 5Gbps Port(s) Type-A:

4



Back HDMI Port(s):

1



Back DisplayPort(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

3



24-pin ATX Power:

1



8-pin ATX Power:

1



USB 2.0 Header(s):

2



USB 5Gbps Header(s):

1



COM Port Header(s):

1



Front Panel Audio Connector:

1



TPM Header(s):

1



S/PDIF Out Header(s):

1



Internal Other Port(s):

3 x Addressable RGB Gen 2 headers



Form Factor:

Micro ATX



Product Width:

221mm



Product Length:

226mm



Package Width:

26cm



Package Length:

27cm



Package Height:

5.15cm



Net Weight:

0.59Kg



Gross Weight:

0.90Kg



Special Features:

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 series processors. The PRIME A620AM-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.



Package Contents:


Motherboard
2 x SATA 6Gb/s cables
1 x I/O shield
1 x Screw package for M.2 SSD
1 x Quick start guide
