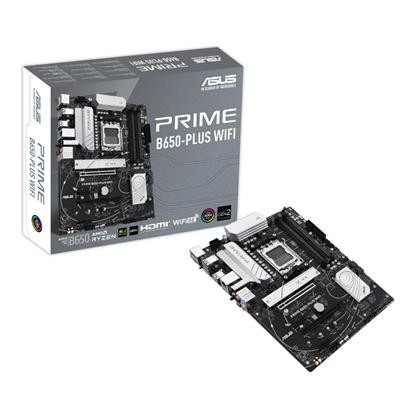

Asus PRIME B650-PLUS WIFI Socket Am5/B650/Ddr5/S-Ata 6Gb/S/Atx PRIME B650-PLUS WIFI

Product Group:

Motherboards



Manufacturer:

ASUS



SKU:
6856


Product Specifications



Product Name:

ASUS PRIME B650-PLUS WIFI (Socket AM5/B650/DDR5/S-ATA 6Gb/s/ATX)



Web Address:

www.asus.com



Model Number:

PRIME B650-PLUS WIFI



EAN:

4711387760895



UPC:
7105760899



Package Type:

Retail



Warranty:

3 Years



BIOS:

256 Mb Flash ROM, UEFI AMI BIOS



Chipset:

AMD B650



CPU Interface:

Socket AM5



CPU Support:

https://www.asus.com/uk/motherboards-components/motherboards/prime/prime-b650-plus-wifi/helpdesk_qvl_cpu?model2Name=PRIME-B650-PLUS-WIFI



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 7600+ (O.C.)



Max. Memory Support:
2GB



PCI Express 4.0 x16:

2



PCI Express 4.0 x1:

2



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/5/10



M.2 Socket(s):


1 x PCIe Gen 5.0 x4
1 x PCIe Gen 4.0 x4




LAN Speed:

1 x Realtek 2.5Gb Ethernet



Wireless NIC:

Wi-Fi 6E



Wireless Technology:


2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band




Bluetooth:

v5.3



On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC



On-Board Video:

Processor with integrated graphics is required



Back Panel I/O Ports:

1



Back USB 2.0 Port(s):

2



Back USB 5Gbps Port(s) Type-A:

2



Back USB 10Gbps Port(s) Type-A:

3



Back USB 10Gbps Port(s) Type-C:

1



Back HDMI Port(s):

1



Back DisplayPort(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

5



Back S/PDIF Output Port(s):

1



Back Other Port(s):

1 x Wi-Fi Module



Back Button(s):

1 x BIOS FlashBack



24-pin ATX Power:

1



8-pin ATX Power:

1



USB 2.0 Header(s):

2



USB 5Gbps Header(s):

2



Thunderbolt Header(s):

1



COM Port Header(s):

1



Front Panel Audio Connector:

1



TPM Header(s):

1



Internal Other Port(s):


3 x Addressable Gen 2 headers
1 x Aura RGB header




Form Factor:

Standard ATX



Product Width:

244mm



Product Length:

305mm



Package Width:

27.5cm



Package Length:

34.5cm



Package Height:

7cm



Gross Weight:

1.67Kg



Special Features:


AMD AM5 Socket: Ready for AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors.
Ultrafast Connectivity: WIFI 6E, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 10Gbps Type-C, front USB 5Gbps Type-C, Thunderbolt 4 header support.
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking.
Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware.




Package Contents:


Motherboard
2 x SATA 6Gb/s cables
1 x I/O Shield
1 x Wi-Fi moving antenna
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
1 x User guide
