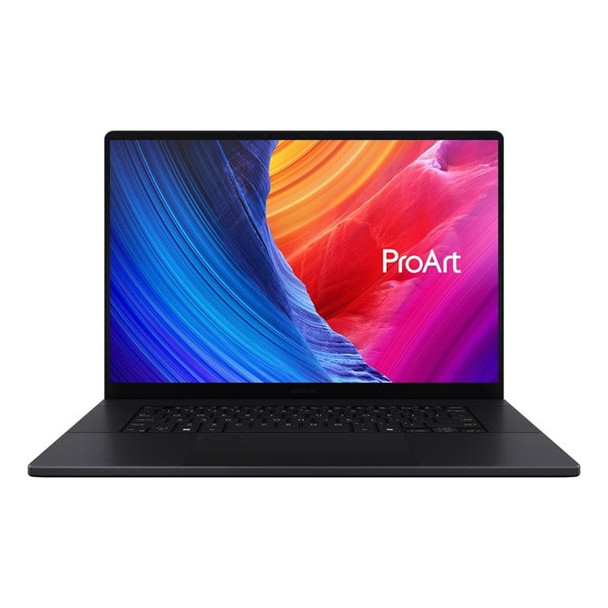

ASUS ProArt P16 H7606WR-SE004W Copilot+ PC AMD Ryzen AI 9 HX 370 Laptop 40.6 Cm H7606WR-SE004W

Unleash your creative potential with ProArt P16, the ultimate creator laptop built for studio and on-the-go production. Powered by the AMD Ryzen- AI 9 HX 370 processor with a 50 TOPS NPU and GeForce RTX- 5070 Ti Laptop GPU, it delivers unmatched performance for demanding workflows. The ASUS Lumina Pro OLED display offers stunning colour accuracy, visual clarity, seamless motion and eye care for exceptional visuals. With Copilot+ PC capabilities, NVIDIA- RTX AI acceleration, and exclusive ASUS AI tools like StoryCube and MuseTree, ProArt P16 empowers you to create smarter, faster, and more intuitively than ever.

Specs




Design


Colour name

Nano Black


Product type

The sub-category of the product.

Laptop


Product colour

The colour e.g. red, blue, green, black, white.

Black


Form factor

The shape or design of the product.

Clamshell


Housing material

What the casing of the product is made of.

Aluminium


Country of origin

Country where the device is made. Aka Country of manufacture (COM).

China


Display


Display diagonal

Size of the display for this product, measured diagonally, usually in inches.

40.6 cm (16")


Display resolution

The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width - height, with the units in pixels: for example, "1024 - 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.

3840 x 2400 pixels


Touchscreen

A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.




HD type

Type of supported High Definition (e.g. Full HD, 4K Ultra HD).

WQUXGA


Panel type

OLED


Display number of colours

1.07 billion colours


Native aspect ratio

The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.
:10


Anti-glare screen

Always gives an optimal view, even in direct sunlight.




Maximum display brightness (HDR)
00 cd/m-


RGB colour space

DCI-P3


Colour gamut
0%


Low Blue Light technology




Maximum refresh rate
0 Hz


Contrast ratio (typical)

The difference in light intensity between the brightest white and the darkest black.
00000:1


High Dynamic Range (HDR) supported




High Dynamic Range (HDR) technology

DisplayHDR True Black 1000


Processor


Processor manufacturer

The manufacturer that produced the processor.

AMD


Processor family

A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.

AMD Ryzen AI 9 HX


Processor generation

AMD Ryzen AI 300 Series


Processor model

The model number for the processor in a computer.

370


Processor cores

The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).



Processor threads

24


Processor boost frequency

The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.

5.1 GHz


Processor frequency

The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.

2 GHz


Processor cache type

L2 & L3


L3 cache

24 MB


L2 cache

The CPU cache (Level 2) is a smaller, faster memory which stores copies of the data from the most frequently used main memory locations.
MB


Neural processor unit (NPU)


Copilot+ PC




Neural processor unit (NPU)

AMD Ryzen AI


Total processor performance up to

80 TOPs


NPU performance up to

50 TOPs


Memory


Internal memory

A computer's memory which is directly accessible to the CPU.

32 GB


Internal memory type

The type of internal memory such as RAM, GDDR5.

LPDDR5x-SDRAM


Memory form factor

Design of the memory e.g. 240-pin DIMM, SO-DIMM.

On-board


Maximum internal memory

The maximum internal memory which is available in the product.

32 GB


Storage


Total storage capacity

The total amount of data that can be stored on the device.

2 TB


Storage media

Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).

SSD


Total SSDs capacity

2 TB


Number of SSDs installed

1


SSD capacity

The Solid State Drive's data storage capacity.

2 TB


SSD interface

The type of interface(s) with which the Solid State Drive is connected to other hardware.

PCI Express 4.0


NVMe

NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.




SSD form factor

The size of the solid-state drive, given in inches

M.2


M.2 SSD size

2280 (22 x 80 mm)


Optical drive type

An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.




Card reader integrated

A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.




Compatible memory cards

Types of memory cards which can be used with this product.

SD


Graphics


Discrete GPU manufacturer

NVIDIA


Discrete graphics card model

A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.

NVIDIA GeForce RTX 5070 Ti


Discrete graphics card memory
GB


Discrete graphics memory type

GDDR7


On-board graphics card

Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.




On-board GPU manufacturer

AMD


Discrete graphics card





Graphics


On-board graphics card family

AMD Radeon


On-board graphics card model

"Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.

AMD Radeon 890M


Audio


Audio system

System used to play music or speech.

Smart Amp


Built-in microphone

Microphone that is found inside the product.




Camera


Front camera

Camera at the front of the product.




Front camera HD type

Full HD


Infrared (IR) camera




Network


Top Wi-Fi standard

Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 7 (802.11be)


Wi-Fi standards

The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

Wi-Fi 7 (802.11be)


Mobile network connection




Antenna type

Type of antenna, also known an aerial, e.g. external, internal.

2x2


Bluetooth

Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.




Bluetooth version

The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).

5.4


Ports & interfaces


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

1


USB4 Gen 3x2 ports quantity

1


HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

1


HDMI version

2.1


Combo headphone/mic port




USB Type-C DisplayPort Alternate Mode




Performance


Repairability index

9.4


Keyboard


Pointing device

Touchpad + DialPad


Numeric keypad

Small, palm-sized, seventeen key section of a computer keyboard, usually on the very far right. The numeric keypad features digits 0 to 9, addition (+), subtraction (-), multiplication (*) and division (/) symbols, a decimal point (.) and Num Lock and Enter keys. Laptop keyboards often do not have a numpad, but may provide numpad input by holding a modifier key (typically labelled "Fn") and operating keys on the standard keyboard.




Keyboard backlit




Copilot key




Software


Operating system architecture

The way in which the operating system of a computer/smartphone (32-bit/64-bit) is set up.

64-bit


Microsoft Copilot




Trial software

1-month trial for new Microsoft 365 customers. Credit card required.


Operating system installed

Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Windows 11 Home


Bundled software

Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer.

Three-Month Membership of Adobe Creative Cloud All Apps, Individual. The redemption duration from September 15, 2021 to August 31, 2025.


Battery


Battery technology

The type of battery in the device, e.g. nickel-cadmium (NiCd).

Lithium-Ion (Li-Ion)


Number of battery cells

4


Battery capacity

90 Wh


Power


AC adapter power

240 W


AC adapter frequency

50 - 60 Hz


AC adapter input voltage
0 - 240 V


AC adapter output current
A


AC adapter output voltage
V


DC-in jack

The socket/plug where the DC electricity supply connects to the device.




USB Type-C charging port




USB Type-C required charging power (min)

45 W


USB Type-C required charging power (max)
0 W


USB Power Delivery (USB PD)




Security


Windows Hello




Trusted Platform Module (TPM)




Certificates


Compliance certificates

REACH


Sustainability


Sustainability certificates

ENERGY STAR


Weight & dimensions


Width

The measurement or extent of something from side to side.

354.9 mm


Depth

The distance from the front to the back of something.

246.9 mm


Height (front)

The height of the frontside of the product.

1.49 cm


Height (rear)

Height of the backside of the product.

1.83 cm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

1.95 kg


Packaging data


Package width

The distance from one side of the packaging to the other.

488 mm


Package depth

The distance from the front to the back of the packaging.

65 mm


Package height

The distance from the top to the bottom of the packaging.

310 mm


Package weight

Weight of the packaged product.

6.22 kg


Packaging content


AC adapter included




Logistics data


Commodity Classification Automated Tracking System (CCATS)

8471300000
