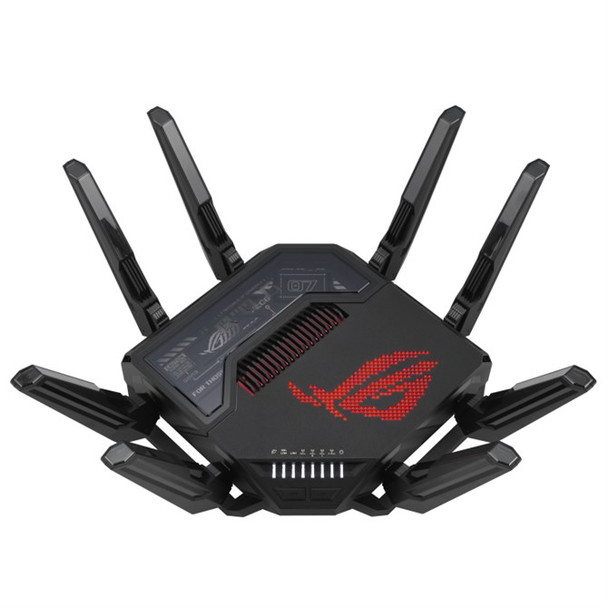

ASUS ROG Rapture GT-BE98 wireless router 10 Gigabit Ethernet Quad-band 2.4 GHz / 90IG08F0-MO9A0V

ROG Rapture GT-BE98
GAME BEYOND SPEEDS
The Rapture series continues to push the boundaries of what is possible for gaming and networking. The ROG Rapture GT-BE98 is a quad-band WiFi 7 gaming router tailored for next-gen computing, with speeds of up to 25 Gbps and dual 10Gbps ports.

Leap Forward with WiFi 7
WiFi 7 (IEEE 802.11be) packs all the benefits of WiFi 6/6E and expands several existing WiFi standards to a whole new level, such as 320 MHz bandwidth and 4K-QAM. And it introduces some revolutionary features like Multi-Link Operation. These combined technologies provide beyond fast speeds, extremely low latency and enhanced reliability. You can enjoy unparalleled network experiences in any online battlefield.

The Next-gen Powerhouse
The ROG Rapture GT-BE98 is is powered by a powerful quad-core 2.6 GHz CPU and WiFi chipset, giving it the performance to handle even the most demanding scenarios, such as 10 Gbps WiFi connections, next-gen cloud-based computing, cloud gaming and cloud AI.

Eliminate WiFi Dead Zones
The ROG Rapture GT-BE98 is equipped with eight sturdy external antennas and sixteen powerful internal dipole antenna elements, while each radio frequency chain has an independent high-power amplifier. Four antennas feature a dual-feed design using copper tubes that provide high efficiency and significantly enhanced signal strength. This optimized antenna array ensures better signal isolation for simultaneous transmission and reception at different frequencies in adjacent bands.

Look Cool, Game Cool
Heat can kill performance. The ROG Rapture GT-BE98 features an aluminum plate on the top that is 30% thicker*, an abrasive-blasted nanocarbon layer and a two-centimeter stand. Coupled with a specially designed vent and heat spreader, this router improves airflow with 18% better heat dissipation.

*Compared to ROG Rapture GT-AXE16000

Triple-level Game Acceleration
Say goodbye to high ping. The GT-BE98 boosts your PC gaming traffic every step of the way, from your PC gaming port all the way to the game server.

Mobile Game Mode
Prioritize the network traffic of your favorite mobile game, minimizing lag and latency with just a tap on the ASUS Router mobile app.

Easy Game Console Port Forwarding
Using OpenNAT on GT-BE98 couldn-t be easier. Enjoy faster connection speed, shorter lobby wait times and smoother gameplay with legacy game consoles or popular gaming handhelds.

AiProtection Pro
Ever-evolving online threats such as malicious website phishing, webcam hacking or ransomware can result in a loss of privacy and finances. The ROG Rapture GT-BE98 includes commercial-grade AiProtection Pro powered by Trend Micro - to shield your network from cyber threats.

Specs




WAN connection


Ethernet WAN




SIM card slot

Whether the device features a SIM card slot.




3G/4G USB modem compatibility




Wireless LAN features


Wi-Fi band

The frequency bands the product features.

Quad-band (2.4 GHz / 5 GHz-1 / 5 GHz-2 / 6 GHz)


Top Wi-Fi standard

Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 7 (802.11be)


WLAN data transfer rate (max)
529 Mbit/s


Wi-Fi standards

The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)


WLAN data transfer rate (first band)
76 Mbit/s


WLAN data transfer rate (second band)

5764 Mbit/s


WLAN data transfer rate (third band)

5764 Mbit/s


WLAN data transfer rate (fourth band)
529 Mbit/s


Modulation

Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel.

4096-QAM


Network


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Ethernet LAN interface type

The characteristics of the Ethernet LAN interface.
Gigabit Ethernet


Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
, 100, 1000, 2500, 10000 Mbit/s


Dynamic DNS (DDNS)




Number of guest networks (2.4 GHz)

5


Number of guest networks (5 GHz)

5


Support Samba (storage)




Media server




VPN support

VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion


Ports & interfaces


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

6


USB port

The device features a socket into which a USB cable can be plugged.




USB 2.0 ports quantity

Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

1


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1


Management features


Quality of Service (QoS) support




Wake-on-LAN ready




Reset button




WPS push button




MU-MIMO technology




Security


Security algorithms

Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

SSH, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK, WPS


Firewall




Parental control




MAC address filtering

Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.





Security


System event log




DMZ support




Protocols


DHCP server

A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.




Design


Product colour

The colour e.g. red, blue, green, black, white.

Black


LED indicators

LAN, Power, WAN


On/off switch

The button which is pressed to switch the device on or off.




Product type

The sub-category of the product.

Tabletop router


Packaging content


Cables included

LAN (RJ-45)


AC adapter included




Warranty card




Quick start guide

Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.




Antenna


Antenna design

External


Antennas quantity

8


Features


Built-in processor

Whether or not a processor is built into the device.




Processor frequency

The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.

2600 MHz


Processor cores

The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).

4


Internal memory

The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.
00 MB


Flash memory

256 MB


Power


Power source type

What the power source is.

AC


AC input voltage

The voltage of the AC electricity that is inputted into the product.
0 - 240 V


AC input frequency

50/60 Hz


Output voltage
.5 V


Output current

3.33 A


Weight & dimensions


Width

The measurement or extent of something from side to side.

350.4 mm


Depth

The distance from the front to the back of something.

350.4 mm


Height

The measurement of the product from head to foot or from base to top.

220.6 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

1.97 kg


Packaging data


Package width

The distance from one side of the packaging to the other.

384 mm


Package depth

The distance from the front to the back of the packaging.

383 mm


Package height

The distance from the top to the bottom of the packaging.

254 mm


Package weight

Weight of the packaged product.

4.85 kg


Package type

The type of product package e.g. box.

Box
