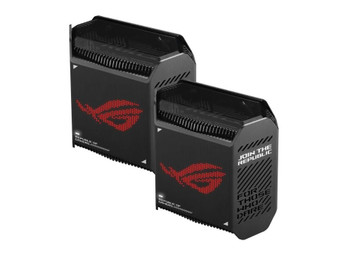

ASUS ROG Rapture GT6 B-2-PK Tri-band 2.4 GHz / 5 GHz / 5 GHz Wi-Fi 6 802.11ax Bl 90IG07F0-MU9A20

Game-Ready Mesh WiFi
Experience the ideal all-around WiFi solution with the latest edition of the Rapture series. The ROG Rapture GT6 is the first tri-band ROG mesh WiFi system and is designed to deliver amazing experiences through the latest network technology. This next-gen gaming mesh WiFi system is your high-tech companion for your internet journey.

Choose Your Style
Designed with the spirit of innovation, the ROG Rapture GT6 draws inspiration from the ROG aesthetic and features distinctive hexagonal patterns throughout. It comes in two colors - Black or Moonlight White. The black version's matte finish and sleek angles offer a futuristic appearance. Meanwhile, the Moonlight White Edition offers a pristine and minimalist look. With both versions, ROG-s famous tagline - -For Those Who Dare- - is prominently displayed.

More Bandwidth, Massive Capacity
Still looking for a WiFi 6 router? Its extreme speed and coverage puts it in a class of its own. With uplink/downlink OFDMA and MU-MIMO, WiFi 6 provides up to 4X more capacity and 2.7X the speed of WiFi 5. It also supports 160 MHz channels to deliver multi-gigabit low-latency connections, increase network capacity and reduce bandwidth congestion.

Made For Gamers
To enjoy the full speed of your internet, whether connecting to a router or its nodes, the backhaul connection is the most important to ensure maximum WiFi performance throughout a home. With dedicated mesh backhaul and the new technology that improves backhaul capacity and performance, the GT6 provides seamless online gameplay.

To ensure better backhaul performance for the GT6, we-ve included an additional -Smart Antenna- that detects the best signal, based on location and direction. Overall performance can increase by up to 15% compared to traditional antennas*. Strong connections across nodes mean that you get seamless WiFi experiences, whether you-re having a conference call or playing a mobile game around the house.
*This result varies depending on the location and direction of the GT6.

The ROG Rapture GT6 supports the newly expanded UNII-4 spectrum, also known as the 5.9 GHz band. This band fully unleashes the power of WiFi 6 by bringing a third and clear 160 MHz channel without any radar system interference1. By leveraging this advantage, users can enjoy stable and powerful mesh backhaul performance that improves the signal range of the 160 MHz channel by up to 20%2, without needing to upgrade to devices that explicitly support the 5.9 GHz band.

1Due to regulatory restrictions, the expanded UNII-4 spectrum and the 160MHz bandwidth may be unavailable in the 5GHz band in some regions/countries. And to benefit from WiFi 6 router features, compatible WiFi 6 devices are required.
2Measured using a WiFi 6 UNII4-supported mesh system, compared to non-UNII4 mesh system.

With ROG-exclusive triple-level game acceleration, you can enjoy the most stable connections, preventing jitter, reducing lag, lowering ping and boosting speeds for fantastic gaming experiences.

Expanded Coverage with RangeBoost Plus
ASUS RangeBoost Plus is the latest, most powerful version of our renowned RangeBoost technology, which can improve the coverage and WiFi performance significantly compared to other models without RangeBoost.

Outstanding WiFi Efficiency
In a router this small, most competing devices have a maximum of eight antennas. To prevent signal drops and inconsistent speeds across nodes, the GT6 embeds nine internal antennas at different angles, effectively limiting dead zones. The additional horizontal antenna provides more options for optimal signal direction.

Looks Cool, Runs Cool
Heat can kill performance. On the top and bottom of the router, there are grills that align perfectly with the heatsink to create the best convective effects and heat dissipation, while side vents employ a classic slash pattern.

Comprehensive Network Security
Subscription-free AiProtection Pro and Instant Guard can secure your WiFi and protect your devices wherever you are.

Alongside the WPA3 security protocol, the ROG Rapture GT6 also features AiProtection Pro powered by Trend Micro- and advanced parental controls, providing the tools you need in one device. Additionally, the latest Safe Browsing feature can filter undesirable content from search engine results for a more family-friendly browsing experience.

Whether you-re traveling to an airport, coffee shop or restaurant, the free WiFi you find in public locations is rarely secure. ASUS Instant Guard lets users leverage their router system as a VPN tunnel when they are on the go, for a more secure internet connection when using public WiFi. In addition, with the latest Instant Guard, this connection can be shared with friends and family via a simple URL link.

Ultra-fast Wired Connection

With a 2.5 Gbps WAN port, ROG Rapture GT6 empowers you to take full advantage of ultrafast speeds offered by internet service providers for your compatible wired devices. In addition, you can also enjoy up to 2 Gbps wired speeds by using the LAN aggregation feature.

Specs




Design


Product type

The sub-category of the product.

Mesh router


Product colour

The colour e.g. red, blue, green, black, white.

Black


LED indicators

Power


Antenna type

Type of antenna, also known an aerial, e.g. external, internal.

Internal


Antennas quantity

9


Maximum coverage

538.8 m?


Reset button




Wireless LAN features


Wi-Fi band

The frequency bands the product features.

Tri-band (2.4 GHz / 5 GHz / 5 GHz)


Top Wi-Fi standard

Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 6 (802.11ax)


Wi-Fi standards

The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)


WLAN data transfer rate (first band)

574 Mbit/s


WLAN data transfer rate (second band)

4804 Mbit/s


WLAN data transfer rate (third band)

4804 Mbit/s


Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n


Security algorithms

Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3


Point-to-point protocol over Ethernet (PPPoE)

The Point-to-Point Protocol over Ethernet (PPPoE) is a network protocol for encapsulating PPP frames inside Ethernet frames. It appeared in 1999, in the context of the boom of DSL as the solution for tunneling packets over the DSL connection to the ISP's IP network, and from there to the rest of the Internet. A 2005 networking book noted that "Most DSL providers use PPPoE, which provides authentication, encryption, and compression." Typical use of PPPoE involves leveraging the PPP facilities for authenticating the user with a username and password, predominately via the PAP protocol and less often via CHAP.




IGMP snooping




Dynamic DNS (DDNS)




VPN support

VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Server WireGuard VPN Fusion


Features


Built-in processor

Whether or not a processor is built into the device.




Processor cores

The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).

3


Processor frequency

The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.

1.7 GHz


Internal memory

The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.

512 MB


Flash memory

256 MB


Quality of Service (QoS) support





Features


BeamForming




DHCP server

A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.




Parental control




SSID Broadcast




MU-MIMO technology




Ports & interfaces


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

4


Ethernet WAN




DC-in jack

The socket/plug where the DC electricity supply connects to the device.




Power


AC input voltage

The voltage of the AC electricity that is inputted into the product.
0 - 240 V


AC input frequency

50 - 60 Hz


AC adapter output voltage
V


AC adapter output current

2.37 A


Weight & dimensions


Width

The measurement or extent of something from side to side.
2.3 mm


Depth

The distance from the front to the back of something.

78.1 mm


Height

The measurement of the product from head to foot or from base to top.
6.8 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

880 g


Packaging content


Number of products included

The number of products that are included in the package.

2 pc(s)


Ethernet cable




Packaging data


Package width

The distance from one side of the packaging to the other.

425 mm


Package depth

The distance from the front to the back of the packaging.
0 mm


Package height

The distance from the top to the bottom of the packaging.

280 mm


Package weight

Weight of the packaged product.

3.72 kg
