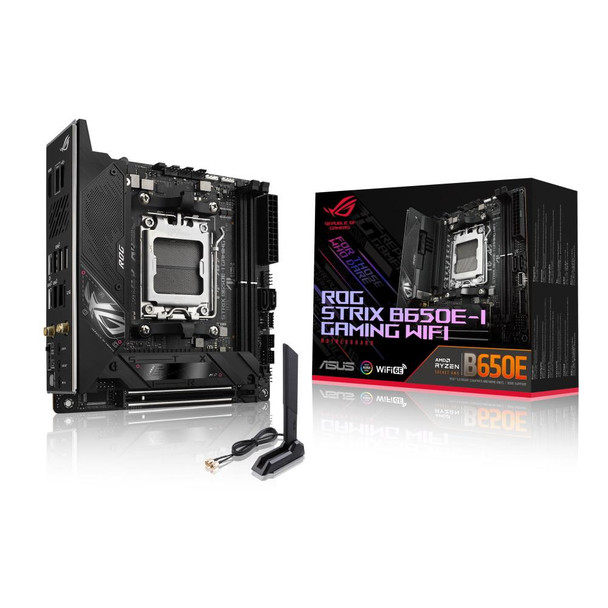

Asus ROG STRIX B650E-I GAMING WIFI Socket Am5/B650/Ddr5/S-Ata 6Gb/S/Mini Itx ROG STRIX B650E-I GAMING WIFI

ASUS AM5 ROG STRIX B650E-I GAMING WIFI
SKU: 122515
Product Group:Motherboards
Manufacturer:ASUS
SKU:122515
Product Name:ASUS ROG STRIX B650E-I GAMING WIFI (Socket AM5/B650/DDR5/S-ATA 6GB/s/Mini ITX)
Web Address:www.asus.com
Model Number:ROG STRIX B650E-I GAMING WIFI
EAN:4711081957881
UPC:195553957885
Package Type:Retail
Warranty:3 Years
BIOS:256 Mb Flash ROM
UEFI AMI BIOS

Chipset:AMD B650
CPU Interface:Socket AM5
RAM Technology:DDR5 (Dual Channel)
RAM Slots:2 x 288-pin
RAM Speeds:Up to DDR5 6400+ (O.C.)
Max. Memory Support:64GB
PCI Express 5.0 x16:1
S-ATA 6Gb/s Port(s):2
RAID:Raid 0/1
M.2 Socket(s):1 x PCIe Gen 5.0 x4
1 x PCIe Gen 4.0 x4

On-Board LAN:1 x Intel 2.5Gb Ethernet
ASUS LANGuard

Wireless NIC:Wi-Fi 6E
Wireless Technology:2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band

Bluetooth:v5.2
On-Board Audio:ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
On-Board Video:AMD processor with integrated graphics is required
Back USB 2.0 Port(s):2
Back USB 3.2 Port(s) Type-A Gen 2:4
Back USB 3.2 Port(s) Type-C Gen 2:1
Back USB 3.2 Port(s) Type-C Gen 2x2:1
Back HDMI Port(s):1
Back LAN Port(s):1
Back Audio Jack(s):3
Back S/PDIF Output Port(s):1
Back Other Port(s):1 x Wi-Fi Module
Back Button(s):1 x BIOS FlashBack
1 x FlexKey

24-pin ATX Power:1
8-pin ATX Power:1
USB 2.0 Header(s):1
USB 3.2 Header(s) Gen 1:1
USB 3.2 Header(s) Gen 2:1
Internal Other Port(s):1 x Addressable Gen 2 Header
1 x AURA RGB Header
1 x Clear CMOS Header
1 x CPU Over Voltage Jumper
1 x Thermal Sensor Header

Form Factor:Mini ITX
Product Width:170mm
Product Length:170mm
Package Width:18.2cm
Package Length:22.2cm
Package Height:9.2cm
Gross Weight:1.32Kg
Special Features:Extreme Engine Digi+
ASUS Q-Design
ASUS Thermal Solution
ASUS EZ DIY
AURA Sync

Package Contents:Motherboard
2 x SATA 6Gb/s Cables
1 x ROG USB2.0 Splitter Cable
1 x Panel Cable
1 x Thermal Pad for M.2
1 x ASUS Wi-Fi Moving Antennas
1 x Cable Ties Package
1 x M.2 Bracket
1 x M.2 SSD Screw Package
1 x M.2 Q-Latch Package for M.2 Backplate
1 x ROG Key Chain
1 x ROG Strix Sticker
1 x ROG Strix Thank You Card
1 x Rubber Package for M.2 Backplate
1 x User Guide
