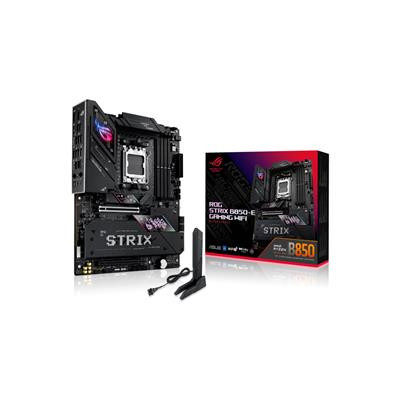

Asus ROG STRIX B850-E GAMING WIFI Am5/B850/Ddr5/S-Ata 6Gb/S/Atx ROG STRIX B850-E GAMING WIFI

Product Group:

Motherboards



Manufacturer:

ASUS



SKU:
6165


Product Specifications



Product Name:

ASUS ROG STRIX B850-E GAMING WIFI (AM5/B850/DDR5/S-ATA 6Gb/s/ATX)



Web Address:

www.asus.com



Model Number:

ROG STRIX B850-E GAMING WIFI



EAN:

4711387769300



UPC:
7105769304



Package Type:

Retail



Warranty:

3 Years



BIOS:

256 Mb Flash ROM, UEFI AMI BIOS



Chipset:

AMD B850



CPU Interface:

Socket AM5



CPU Support:

https://rog.asus.com/motherboards/rog-strix/rog-strix-b850-e-gaming-wifi/helpdesk_qvl_cpu/



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 8000 (O.C.)



Max. Memory Support:
2GB



PCI Express 4.0 x16:

1



PCI Express 5.0 x16:

1



S-ATA 6Gb/s Port(s):

4



M.2 Socket(s):

3 x PCIe Gen 5.0 x4
2 x PCIe Gen 4.0 x4



LAN Speed:

1 x Realtek 5Gb Ethernet
ASUS LANGuard



Wireless NIC:

Wi-Fi 7



Wireless Technology:

x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.



Bluetooth:

v5.4



On-Board Audio:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080



On-Board Video:

Processor with integrated graphics is required



Back USB 2.0 Port(s):

4



Back USB4 Port(s) Type-C:

1



Back USB 10Gbps Port(s) Type-A:

6



Back USB 20Gbps Port(s) Type-C:

1



Back HDMI Port(s):

1



Back DisplayPort(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

2



Back S/PDIF Output Port(s):

1



Back Other Port(s):

1 x Wi-Fi module



Back Button(s):

1 x BIOS FlashBack
1 x Clear CMOS



24-pin ATX Power:

1



8-pin ATX Power:

2



USB 2.0 Header(s):

2



USB 5Gbps Header(s):

1



USB 10Gbps Header(s):

1



Internal Other Port(s):

3 x Addressable Gen 2 headers
1 x CPU Over voltage jumper
1 x Front Panel Audio header
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header



Internal Button(s):

1 x Power button



Form Factor:

Standard ATX



Product Width:

244mm



Product Length:

305mm



Package Width:

28.1cm



Package Length:

35.6cm



Package Height:

8.7cm



Net Weight:

1.83Kg



Gross Weight:

2.65Kg



Special Features:

The ROG Strix B850-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen 9000 Series processors. Featuring PCIe 5.0 support, AI Overclocking, AI Networking II, and AEMP, setup is streamlined while performance is maximized.



Package Contents:

Motherboard
2 x SATA 6Gb/s cables
1 x Thermal pad for M.2 22110
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Slide package
1 x ROG key chain
1 x ROG Strix stickers
5 x M.2 rubbers
1 x Quick start guide
