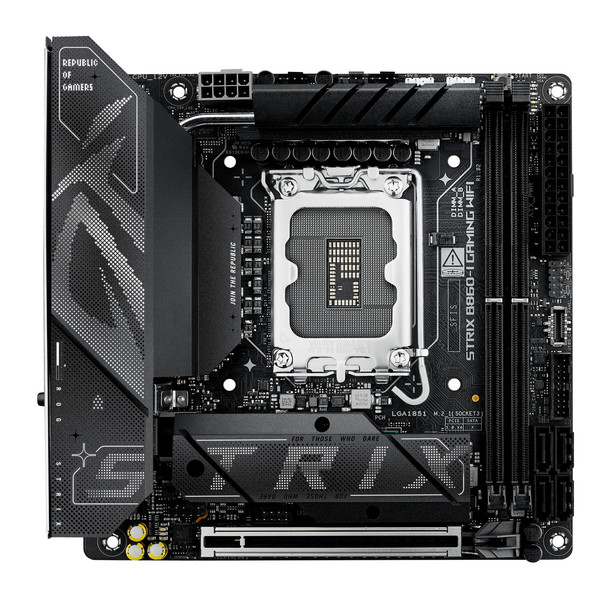

ASUS ROG STRIX B860-I GAMING WIFI Intel LGA 1851 Socket V1 Intel Core Ultra Seri 90MB1JB0-M0EAY0

ROG STRIX B860-I gaming wifi
The ROG Strix B860-I Gaming WiFi is designed to dominate with Intel Core Ultra Processors(Series 2). Its advanced power design and AI solutions drive top-tier performance, while Thunderbolt 4, WiFi 7 and high-speed DDR5 slots offer cutting-edge connectivity. This motherboard delivers the power and speed needed for elite gaming and demanding AI applications.

Processor


Processor socket

LGA 1851 (Socket V1)


Compatible processor series

Intel Core Ultra (Series 2)


Processor manufacturer

Intel



Memory


Supported memory types

DDR5-SDRAM


Unbuffered memory

Yes


ECC ompatibility

Non-ECC


Supported memory clock speed (max)

9066 MHz


Number of memory slots

2


Maximum internal memory
8 GB


Memory slots type

DIMM


Memory channels

Dual-channel



Rear panel I/O ports


HDMI ports quantity

1


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

3


Microphone in

Yes


USB 3?2 Gen 2x2 Type-C ports quantity

1


DisplayPorts quantity

1


Ethernet LAN (RJ-45) ports

1


S/PDIF out port

Yes


USB 3?2 Gen 2 (3?1 Gen 2) Type-A ports quantity

1


Thunderbolt ports quantity

1


USB 2?0 ports quantity

2



Other features


Weight

812.6 g



Internal I/O


Front panel audio connector

Yes


USB 2?0 connectors

1


Number of CPU fan connectors

1


USB 3?2 Gen 1 (3?1 Gen 1) connectors

1


ATX Power connector (24-pin)

Yes


CPU fan connector

Yes

V power connector

Yes


Number of SATA III connectors

4


Number of chassis fan connectors

1


USB 3?2 Gen 2 (3?1 Gen 2) connectors

1


EPS power connector (8-pin)

Yes



Graphics


Parallel processing technology support

Not supported



Weight & dimensions


Width
0 mm


Depth
0 mm



BIOS


Clear CMOS button

Yes


BIOS type

UEFI AMI


BIOS memory size

256 Mbit



Storage controllers


Supported storage drive types

HDD & SSD


Number of storage drives supported

6


RAID support

Yes


RAID levels

0, 1, 5, 10


Supported storage drive interfaces

M.2, SATA III


Number of HDDs supported

4



Network


Bluetooth

Yes


Wi-Fi

Yes


Top Wi-Fi standard

Wi-Fi 7 (802.11be)


Ethernet LAN

Yes


Ethernet interface type

2.5 Gigabit Ethernet


Bluetooth version

5.4



Expansion slots


Number of M?2 (M) slots

2


PCI Express x16 (Gen 5?x) slots

1



Features


Motherboard chipset

Intel B860


Windows operating systems supported

Windows 11


Product colour

Multicolour


Motherboard chipset family

Intel


Component for

PC


Audio chip

Realtek ALC1220P


Audio output channels

7.1 channels


Motherboard form factor

mini ITX



Packaging data


Package height

96 mm


Package depth
7 mm


Package width

228 mm


Package weight

1.47 kg
