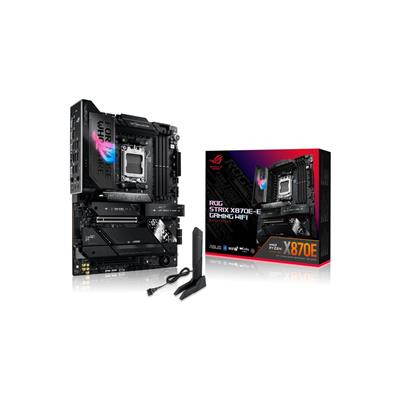

Asus ROG STRIX X870E-E GAMING WIFI Socket Am5/X870e/Ddr5/S-Ata 6Gb/S/Atx ROG STRIX X870E-E GAMING WIFI

Product Group:

Motherboards



Manufacturer:

ASUS



SKU:
5662


Product Specifications



Product Name:

ASUS ROG STRIX X870E-E GAMING WIFI (Socket AM5/X870E/DDR5/S-ATA 6Gb/s/ATX)



Web Address:

www.asus.com



Model Number:

ROG STRIX X870E-E GAMING WIFI



EAN:

4711387724163



UPC:
7105724163



Package Type:

Retail



Warranty:

3 Years



BIOS:

256 Mb Flash ROM
UEFI AMI BIOS



Chipset:

AMD X870E



CPU Interface:

Socket AM5



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 8400 (O.C.)



Max. Memory Support:
2GB



PCI Express 4.0 x16:

1



PCI Express 5.0 x16:

1



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/5/10



M.2 Socket(s):

3 x PCIe Gen 5.0 x4
2 x PCIe Gen 4.0 x4



On-Board LAN:

1 x Realtek 5Gb Ethernet
ASUS LANGuard



Wireless NIC:

Wi-Fi 7



Wireless Technology:

2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate



Bluetooth:

v5.4



On-Board Audio:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080



On-Board Video:

Processor with integrated graphics is required



Back USB 10Gbps Port(s) Type-A:

9



Back USB 10Gbps Port(s) Type-C:

1



Back USB 20Gbps Port(s) Type-C:

1



Back USB 40Gbps Port(s) Type-C:

2



Back HDMI Port(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

2



Back S/PDIF Output Port(s):

1



Back Other Port(s):

1 x Wi-Fi Module



Back Button(s):

1 x BIOS FlashBack
1 x Clear CMOS



24-pin ATX Power:

1



8-pin ATX Power:

2



USB 2.0 Header(s):

3



USB 5Gbps Header(s):

2



USB 20Gbps Header(s):

1



Front Panel Audio Connector:

1



Internal Other Port(s):

3 x Addressable Gen 2 headers
1 x CPU Over Voltage jumper
1 x Thermal Sensor header



Internal Button(s):

1 x FlexKey
1 x Start



Form Factor:

Standard ATX



Product Width:

244mm



Product Length:

305mm



Package Width:

28.5cm



Package Length:

36cm



Package Height:

9cm



Gross Weight:

2.87Kg



Special Features:

The ROG Strix X870E-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen 9000 Series processors. Featuring PCIe 5.0 support, AI Overclocking, AI Cooling II, AI Networking II, and AEMP, setup is streamlined while performance is maximized. Dual USB4 Type-C ports and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads.



Package Contents:

Motherboard
2 x SATA 6Gb/s cables
1 x Thermal pad for M.2 22110
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
2 x M.2 Q-Slides
1 x ROG key chain
1 x ROG Strix stickers
5 x M.2 Rubbers
1 x Quick start guide
