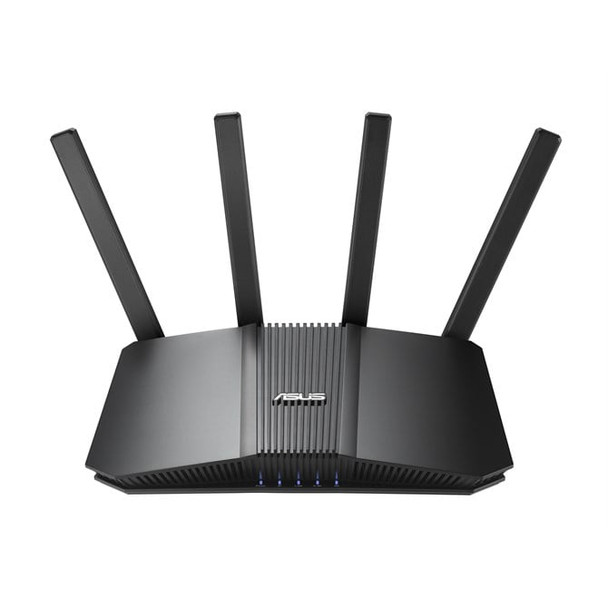

ASUS RT-BE58U V2 Wireless Router 2.5 Gigabit Ethernet Dual-Band 2.4 GHz / 5 GHz 90IG0A70-MO9C00

Specs




WAN connection


Ethernet WAN




SIM card slot

Whether the device features a SIM card slot.




WAN connection type

RJ-45


Wireless LAN features


Wi-Fi band

The frequency bands the product features.

Dual-band (2.4 GHz / 5 GHz)


Top Wi-Fi standard

Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 7 (802.11be)


WLAN data transfer rate (max)

3600 Mbit/s


Wi-Fi standards

The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

802.11a, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax)


Modulation

Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel.

4096-QAM


Network


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Ethernet LAN interface type

The characteristics of the Ethernet LAN interface.

2.5 Gigabit Ethernet


Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
00, 2500 Mbit/s


Port forwarding




Port triggering




Ports & interfaces


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

5


USB port

The device features a socket into which a USB cable can be plugged.




USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1


DC-in jack

The socket/plug where the DC electricity supply connects to the device.




Management features


Reset button




WPS push button




Security


Parental control




Design


Product colour

The colour e.g. red, blue, green, black, white.

Black


LED indicators

Power, LAN, WAN


On/off switch

The button which is pressed to switch the device on or off.




Product type

The sub-category of the product.

Tabletop router



Antenna


Antenna design

External


Antennas quantity

4


Features


Built-in processor

Whether or not a processor is built into the device.




Processor manufacturer

The manufacturer that produced the processor.

Broadcom


Processor frequency

The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.
00 MHz


Processor cores

The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).

4


Power


Power source type

What the power source is.

DC


Output voltage
V


Output current

2 A


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

0 - 70 -C


Operating relative humidity (H-H)

50 - 90%


Storage relative humidity (H-H)
- 90%


Weight & dimensions


Width

The measurement or extent of something from side to side.

238 mm


Depth

The distance from the front to the back of something.
3 mm


Height

The measurement of the product from head to foot or from base to top.

59 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

461 g


Packaging data


Package width

The distance from one side of the packaging to the other.

285 mm


Package depth

The distance from the front to the back of the packaging.
3 mm


Package height

The distance from the top to the bottom of the packaging.
4 mm


Package weight

Weight of the packaged product.

1.03 kg


Package type

The type of product package e.g. box.

Box
