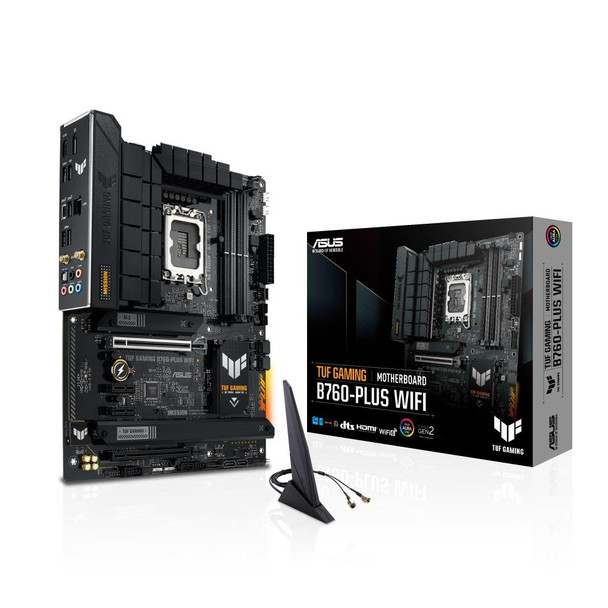

Asus TUF GAMING B760-PLUS WIFI Socket 1700/B760/Ddr5/S-Ata 6Gb/S/Atx TUF GAMING B760-PLUS WIFI

ASUS 1700 TUF GAMING B760-PLUS WIFI
SKU: 123603
Product Group:Motherboards
Manufacturer:ASUS
SKU:123603
Product Name:ASUS TUF GAMING B760-PLUS WIFI (Socket 1700/B760/DDR5/S-ATA 6Gb/s/ATX)
Web Address:www.asus.com
Model Number:TUF GAMING B760-PLUS WIFI
EAN:4711387095119
UPC:197105095113
Package Type:Retail
Warranty:3 Years
BIOS:128 Mb Flash ROM, UEFI AMI BIOS
Chipset:Intel B760
CPU Interface:Socket 1700
CPU Support:https://www.asus.com/uk/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760-plus-wifi/helpdesk_qvl_cpu/?model2Name=TUF-GAMING-B760-PLUS-WIFI
RAM Technology:DDR5 (Dual Channel)
RAM Slots:4 x 288-pin
RAM Speeds:Up to DDR5 7200 (O.C.)
Max. Memory Support:192GB
PCI Express 3.0 x16:1
PCI Express 5.0 x16:1
PCI Express 3.0 x1:2
S-ATA 6Gb/s Port(s):4
M.2 Socket(s):3 x PCIe Gen 4.0 x4
On-Board LAN:1 x Realtek 2.5Gb Ethernet
TUF LANGuard

Wireless NIC:Wi-Fi 6
Wireless Technology:2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band

Bluetooth:v5.2
On-Board Audio:Realtek 7.1 Surround Sound High Definition Audio CODEC
On-Board Video:Processor with integrated graphics is required
Back USB 2.0 Port(s):1
Back USB 3.2 Port(s) Type-A Gen 1:3
Back USB 3.2 Port(s) Type-A Gen 2:1
Back USB 3.2 Port(s) Type-C Gen 2x2:1
Back HDMI Port(s):1
Back DisplayPort(s):1
Back LAN Port(s):1
Back Audio Jack(s):5
Back S/PDIF Output Port(s):1
Back Other Port(s):1 x Wi-Fi Module
24-pin ATX Power:1
8-pin ATX Power:1
4-pin ATX Power:1
USB 2.0 Header(s):2
USB 3.2 Header(s) Gen 1:1
USB 3.2 Header(s) Gen 2:1
Thunderbolt Header(s):1
COM Port Header(s):1
Front Panel Audio Connector:1
Internal Other Port(s):3 x Addressable Gen 2 headers
1 x Aura RGB header

Form Factor:Standard ATX
Product Width:244mm
Product Length:305mm
Package Width:27.5cm
Package Length:36cm
Package Height:7cm
Gross Weight:1.79Kg
Special Features:TUF GAMING B760-PLUS WIFI takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming.
Package Contents:Motherboard
2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antenna
1 x TUF Gaming sticker
2 x M.2 Rubber Packages
1 x Screw package for M.2 SSD
1 x TUF Certification card
1 x User guide
