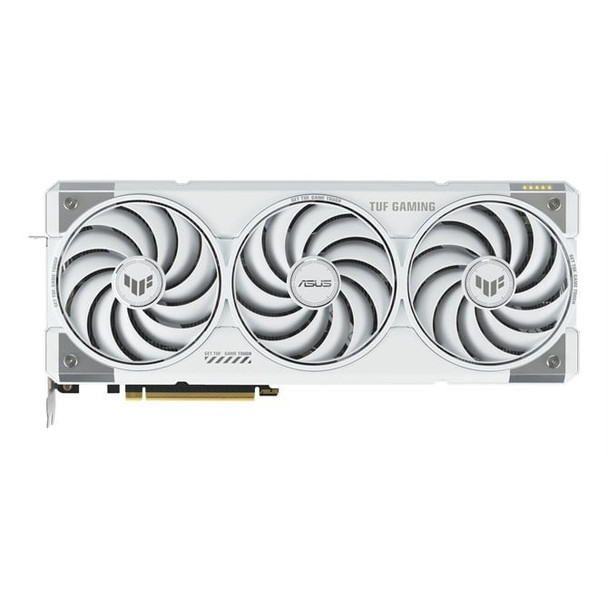

ASUS TUF Gaming TUF-RTX5070TI-O16G-WHITE-GAMING NVIDIA Geforce RTX 5070 Ti 16 GB 90YV0MD3-M0NA00

Game TUF. Built to Last.
NVIDIA Blackwell architecture is elevated by enhanced cooling and power delivery, fortified with rugged reinforcements for exceptional durability. Lock, load and dominate with the TUF Gaming GeForce RTX- 5070 Ti White Edition, designed to withstand the harshest conditions and deliver unparalleled performance.

NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors
Optimized for neural shaders

Fourth-Gen Ray Tracing Cores
Built for Mega Geometry

Premium Durability
Military-Grade Components

TUF Chokes & MOSFETs
Certified military-grade TUF chokes and MOSFETs deliver rock-solid power to the GPU, which can help improve system stability.

TUF Capacitors
TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X longer lifespan than standard capacitors.

Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.

Protective PCB Coating
A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.

Dual-ball Fan Bearings
Dual-ball bearings offer an extensive lifespan of up to 80,000 hours, double the longevity of sleeve bearings and surpassing fluid dynamic bearings. This helps ensure long-lasting, reliable and quiet cooling.

Cooling Mastery
This advanced cooling design features the ASUS-exclusive MaxContact manufacturing technique, a phase-change GPU thermal pad and efficient Axial-tech fans, helping to ensure premium thermal performance, optimized airflow and quiet operation, all within a robust and vented metal exoskeleton.

MaxContact Design
MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2?C, in concert with an extensive heatsink array and powerful Axial-tech fans.

Axial-tech Upgrades
Axial-tech fans spin on dual-ball bearings and propel more air than standard fans.

New Directions
The two outer fans spin counterclockwise to reduce turbulence and enhance air dispersion. All three fans stop when GPU temps are below 50?C, for quieter operation during light tasks. They restart above 55?C, following a speed curve that balances performance and acoustics.

Vented Exoskeleton
A high-quality diecast shroud and aluminum backplate help prevent PCB flex and feature large vents to further increase heat dissipation

Reliability

ASUS GPU Guard & Bracket
ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.

Auto?Extreme Technology
An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.

RTX. It-s On.
The Ultimate in Ray Tracing and AI
RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.

Creators
Your Creative AI-dvantage
NVIDIA Studio is your creative advantage. GeForce RTX 50 Series GPUs unlock transformative performance in video editing, 3D rendering, and graphic design. Experience RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered and continually updated to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.

Specs




Processor


CUDA

CUDA (aka Compute Unified Device Architecture) is a parallel computing platform and programming model created by NVIDIA and implemented by the graphics processing units (GPUs) that they produce. CUDA gives program developers direct access to the virtual instruction set and memory of the parallel computational elements in CUDA GPUs.




CUDA cores

8960


Graphics processor family

The category to which the graphics processor (GPU) belongs e.g. Southern Islands family of Radeon processors (made by AMD), GeForce 600 (made by NVIDIA).

NVIDIA


Graphics processor

Also known as a graphics processing unit (GPU), this is a specialized electronic circuit designed to rapidly manipulate and alter memory to accelerate the creation of images in a frame buffer intended for output to a display. GPUs are used in embedded systems, mobile phones, personal computers, workstations, and game consoles. Modern GPUs are very efficient at manipulating computer graphics.

GeForce RTX 5070 Ti


Processor boost clock speed

2588 MHz


Processor frequency (OC mode)

2610 MHz


Maximum resolution

The maximum number of pixels that can be displayed in the image. It is usually quoted as width - height,: for example, "1024 - 768" means the width is 1024 pixels and the height is 768 pixels.

7680 x 4320 pixels


Parallel processing technology support

Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally, parallel processing makes programs run faster because there are more engines (CPUs or Cores) running it. In practice, it is often difficult to divide a program in such a way that separate CPUs or cores can execute different portions without interfering with each other. Most computers have just one CPU, but some models have several, and multi-core processor chips are becoming the norm. There are even computers with thousands of CPUs.

Not supported


Maximum displays per videocard

4


Memory


Discrete graphics card memory
GB


Graphics card memory type

The type of memory used by the video card. Often a combination of dedicated memory (Video RAM or VRAM) and dynamic system memory is used. UMA stands for Unified Memory Architecture, and is a computer memory architecture that allows the graphics processing unit to share system memory. Other abreviations: RAM = Random Access Memory, SDRAM = synchronous dynamic RAM, DDR = double-data-rate.

GDDR7


Memory bus

Hardware and software that connects the main memory to the memory controller in computer systems. Originally, general-purpose buses like VMEbus and the S-100 bus were used, but to reduce latency, modern memory buses are designed to connect directly to DRAM chips, and thus are designed by chip standards bodies such as JEDEC.

256 bit


Memory bandwidth (max)

28 GB/s


Ports & interfaces


Interface type

PCI Express 5.0


HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

2


HDMI version

2.1b


DisplayPorts quantity

Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

3


DisplayPort version

2.1b


Performance


TV tuner integrated

Device has an in-built TV tuner.




DirectX version

DirectX is a collection of APIs (application programming interfaces) for easily handling tasks related to game programming on the Microsoft Windows operating system.
Ultimate


OpenGL version

OpenGL (Open Graphics Library) is a specification defining a cross-language cross-platform API for writing applications that produce 3D computer graphics (and 2D computer graphics as well). The interface consists of over 250 different function calls which can be used to draw complex three-dimensional scenes from simple primitives.

4.6


HDCP

High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.




HDCP version

2.3



Performance


Dual Link DVI

A dual-link DVI interface sends data over both of the DVI links to the monitor, and this is how higher resolutions are achieved. With dual-link DVI, a resolution of 2048 x 1536 is possible.




NVIDIA G-SYNC




NVIDIA Ansel




NPU performance up to
06 TOPs


Overclocked (OC) edition




Design


Cooling type

The method used to cool the device or to cool the air around the device.

Active


Cooling technology

ASUS Axial-tech


Number of fans

The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).

3 fan(s)


Form factor

The shape or design of the product.

Full-Height/Full-Length (FH/FL)


Number of slots

3.125


Illumination

The device has illumination.




Illumination colour

The colour of the illumination, which is the light which allows you to see the display etc. clearly.

Multi


Product colour

The colour e.g. red, blue, green, black, white.

White


Power


Minimum system power supply

The lowest power that is needed.

850 W


Supplementary power connectors

1x 16-pin


Weight & dimensions


Length

The measurement or extent of something from end to end.

329 mm


Depth

The distance from the front to the back of something.

62.5 mm


Height

The measurement of the product from head to foot or from base to top.
0 mm


Packaging data


Package width

The distance from one side of the packaging to the other.

420 mm


Package depth

The distance from the front to the back of the packaging.

226 mm


Package height

The distance from the top to the bottom of the packaging.

87 mm
