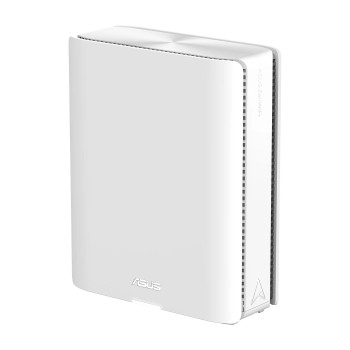

ASUS ZenWiFi BQ16 Tri-band 2.4 GHz / 5 GHz / 6 GHz Wi-Fi 7 802.11be White 5 Inte 90IG08K0-MO3N0V

BQ16 Quad Band WiFi 7 (802.11be) BE25000 Mesh WiFi System, support new 320MHz bandwidth & 4096-QAM, Multi-link operation (MLO),dual 10G ports, backup WAN, subscription free network security and AiMesh support

Specs




Design


Product colour

The colour e.g. red, blue, green, black, white.

White


LED indicators

Power


Antenna type

Type of antenna, also known an aerial, e.g. external, internal.

Internal


Antennas quantity



Reset button




Wireless LAN features


Wi-Fi band

The frequency bands the product features.

Quad-band (2.4 GHz / 5 GHz-1 / 5 GHz-2 / 6 GHz)


Top Wi-Fi standard

Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 7 (802.11be)


Wi-Fi standards

The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)


WLAN data transfer rate (max)
529 Mbit/s


WLAN data transfer rate (first band)
76 Mbit/s


WLAN data transfer rate (second band)

5764 Mbit/s


WLAN data transfer rate (third band)
529 Mbit/s


Security algorithms

Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal, WPS


Guest access




VPN support

- VPN Client L2TP - VPN Client Open VPN - VPN Client PPTP - VPN Server IPSec - VPN Server Open VPN - VPN Server PPTP - VPN Fusion


Features


Internal memory

The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.
48 MB


Flash memory

256 MB


BeamForming




Parental control features

Content filter, Time controls, Time rewards


Operating modes

Wireless Router Mode, AiMesh Node Mode, Access Point Mode


Ports & interfaces


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

5



Ports & interfaces


Ethernet WAN




USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1


DC-in jack

The socket/plug where the DC electricity supply connects to the device.




Power


AC input voltage

The voltage of the AC electricity that is inputted into the product.
0 - 240 V


AC input frequency

50 - 60 Hz


AC adapter output voltage
V


AC adapter output current

3.42 A


Weight & dimensions


Width

The measurement or extent of something from side to side.
7 mm


Depth

The distance from the front to the back of something.

72 mm


Height

The measurement of the product from head to foot or from base to top.

218 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

1.3 kg


Packaging content


Number of products included

The number of products that are included in the package.

1 pc(s)


AC adapter included




Ethernet cable




Quick installation guide




Packaging data


Package width

The distance from one side of the packaging to the other.

330 mm


Package depth

The distance from the front to the back of the packaging.
mm


Package height

The distance from the top to the bottom of the packaging.

230 mm


Package weight

Weight of the packaged product.

2.4 kg
