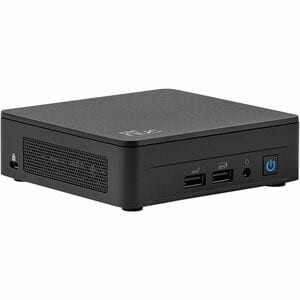

Asustek Computer Asus Nuc 13 Rnuc13L5Ki300000I. Product Type: Mini Pc Barebone. 90AR0081-M00010

ASUS NUC 13 RNUC13L5KI300000I. Product type: Mini PC barebone. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: SSD. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 6E (802.11ax), Bluetooth version: 5.3. Cooling type: Active. Power supply: 120 W NUC 13 Pro: The Right Size for Modern Business Get the latest in business performance with 13th Gen Intel?- Core--- processors featuring up to 14 cores (6P+8E) and up to 64GB dual-channel memory For professional-grade performance, the 13th Gen Intel Core---i7-1370P processor features 14 cores (6P+8E), 20 threads, 24MB Intel?- Smart Cache, and 35W TDP Businesses get the fast memory they need with up to 64GB dual-channel DDR4-3200 SODIMMs Wired and wireless connections are lightning fast with up to a 2.5 Gbps Intel?- Ethernet port and Intel?- Wi-Fi 6E (Gig+) Dual HDMI 2.1 and Thunderbolt---4 ports give businesses flexibility to connect up to 4K extended displays Business Driver. Space Saver. NUC 13 Pro Mini PCs, Kits, and Boards offer the combination of size, performance, and reliability you need to drive modern business. It all starts with 13th Gen Intel Core processors that deliver outsized performance in a 4x4 form factor, with up to 14 processor cores (6P+8E) and up to 64GB dual-channel DDR4 memory. Select SKUs also come with Intel vPro?-Enterprise, which provides comprehensive security, enterprise-grade stability, and hardware-based remote management. The NUC Pro Software Suite (NPSS) helps to ensure digital signage applications keep running during any unexpected system failures. Businesses also benefit from advanced features including power control, hardware alarm clock, hardware KVM, boot redirection, beyond firewall support, cloud-based manageability, remote PC remedy, and unattended system control. To provide an eco-friendly foundation for businesses, NUC 13 Pro Mini PCs and Kits are upgradable, reparable, and reusable. Every system is qualified for 24x7 operation.
Chipset

Chipset ManufacturerIntel

I/O Expansions

Number of M.2 Interfaces2

Controllers

Controller TypeNVMe
Serial ATA

Display & Graphics

Graphics Memory TechnologyDDR4 SDRAM
Graphics Memory AccessibilityShared

Miscellaneous

Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)

Storage

Supported Storage Drive InterfacesPCI Express
Supported Storage Drive TypesSSD

Operating System

Operating System SupportedRed Hat Linux
Windows 10 IoT Enterprise
Ubuntu Linux

Physical Characteristics

Height37 mm
Width112 mm
Depth117 mm

Memory

Maximum Memory Supported64 GB
Memory TechnologyDDR4 SDRAM
Memory StandardDDR4-3200/PC4-25600
Intel Optane Memory ReadyNo
Total Number of Memory Slots2

Processor

Processor Speed1.20 GHz
Processor TypeCore i3
Processor SocketSocket BGA-1744
Processor Modeli3-1315UE
Processor CoreHexa-core (6 Core)
64-bit ProcessingYes
Number of Processors Supported1
Number of Processors Installed1
Maximum Turbo Speed4.50 GHz
Processor Generation13th Gen


Network & Communication

BluetoothYes
Wireless LANYes
Wireless LAN StandardIEEE 802.11ax
Bluetooth StandardBluetooth 5.3
Ethernet Technology2.5 Gigabit Ethernet

Interfaces/Ports

HDMIYes
Network (RJ-45)Yes
DisplayPortYes
Total Number of USB Ports7
Number of Onboard USB 2.0 Ports3
Number of USB 3.2 Ports3
Number of Thunderbolt 4 Ports2

General Information

Product TypeBarebone System
Manufacturer Part Number90AR0081M00010
Manufacturer Website Addresshttp://uk.asus
ManufacturerASUS Computer International
Product ModelNUC13L5KI3
Product NameNUC 13 Pro NUC13L5KI3 Barebone System
Product LineNUC 13 Pro
Brand NameAsus

Processor & Chipset

Processor Speed1.20 GHz
Processor TypeCore i3
Processor SocketSocket BGA-1744
Processor Modeli3-1315UE
Processor CoreHexa-core (6 Core)
64-bit ProcessingYes
Chipset ManufacturerIntel
Number of Processors Supported1
Number of Processors Installed1
Maximum Turbo Speed4.50 GHz
Processor Generation13th Gen
